Basic Information
| Model NO. | MF-AL-120W | Lamp Body Material | Aluminum |
| Power | 60W/80W/100W/120W/150W/200W | Warranty | 5 years |
| IP Rating | IP65/IP66 | Certification | CE, RoHS, UL, DLC |
| Luminous Flux | 14600lm | Light Effi. | 130lm/W |
| Beam Angle | 120 Degree | CRI | ≥80 |
| LED Type | SMD 2835 Chips | Voltage | 100-277V |
Specifications
Technical Parameters:
- Frequency Range: 50Hz--60Hz
- Light Quality: Bright Intensity
- CCT: 4500~5700K (Selectable)
- Life Time: 50000h
- Protection Level: IP66
- PF: >0.9
Key Features & Advantages
- Dual-Light Design: Combines ambient top lighting with functional bottom illumination.
- Energy Saving: 130Lm/W efficiency with SMD2835 LEDs, reducing energy by 70%.
- CCT Selectable: Switch between 3000K, 4000K, and 5000K.
- Robust Protection: 6kV built-in plus 10kV external surge protection.
- Custom Housing: Die cast aluminum with corrosion-resistant powder coat paint.
- Smart Control: Built-in photocell for dusk-to-dawn operation.
- Certified: UL, cUL, DLC, CE approved safety certification.

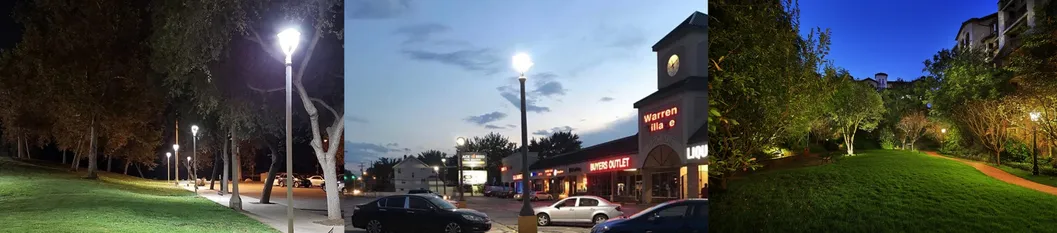

Applications
- Urban Parks & Green Spaces
- Commercial & Retail Districts
- Residential Yard & Garden Lighting
- Industrial Harsh Environments
- Educational Campuses
- Transport Hubs & Pathways

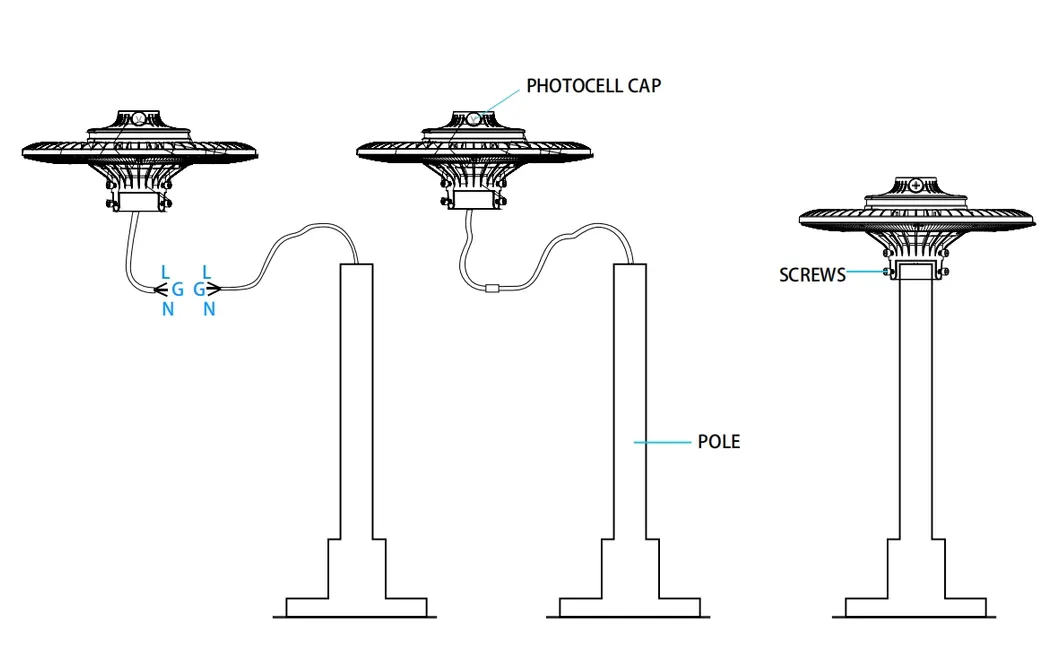

Installation Instructions

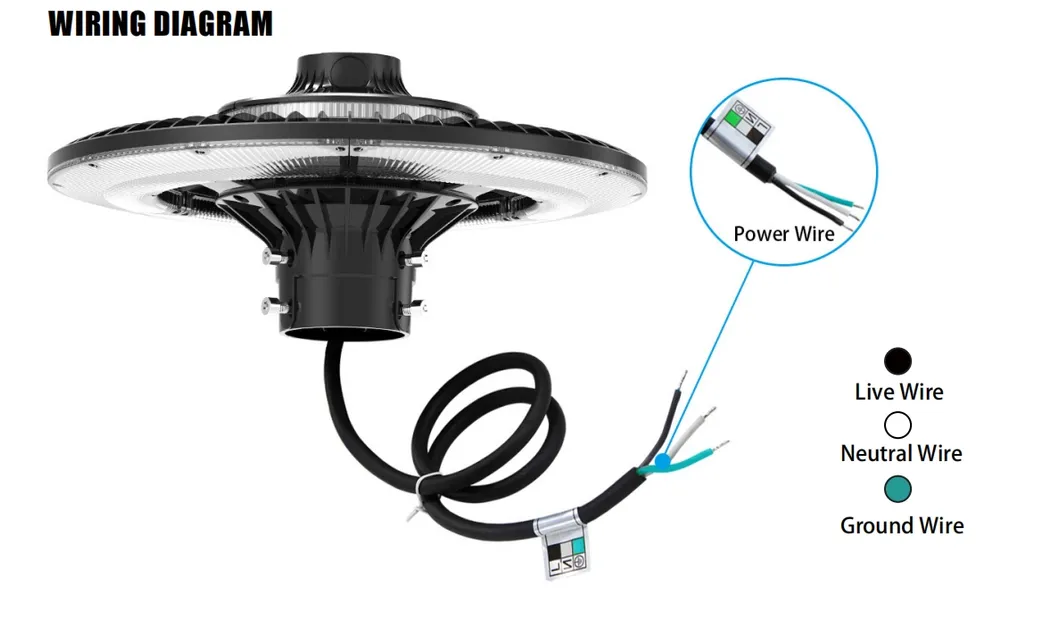

1. Wiring: Match black (Live), white (Neutral), and green (Ground) wires.
2. Pole Fitment: Secure with 6 screws on 2 3/8" tenon adapters.

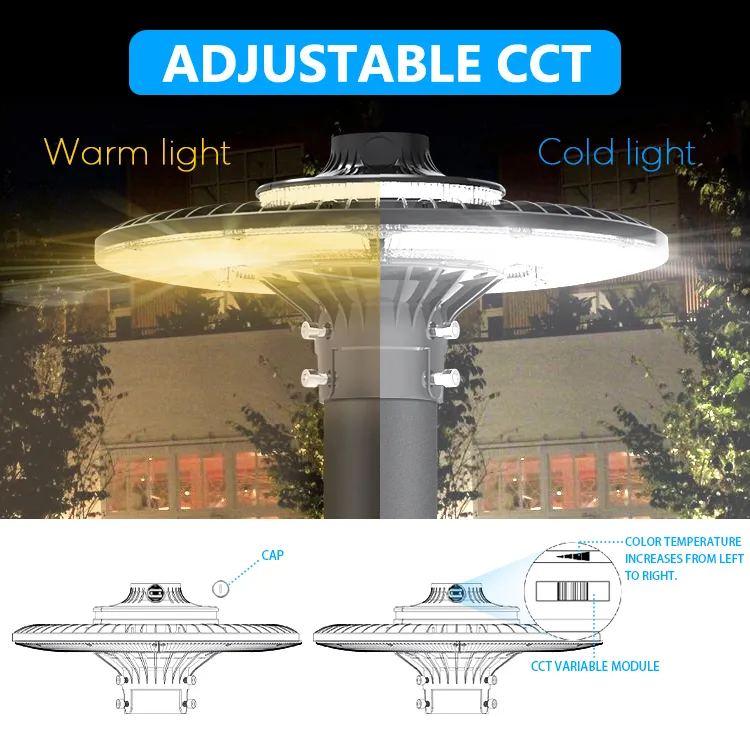

3. CCT Adjustment: Power off before rotating the cap to change color temperature.
4. Sensor Test: Verify photocell function post-installation.
5. Maintenance: Inspect seals and screws biannually.

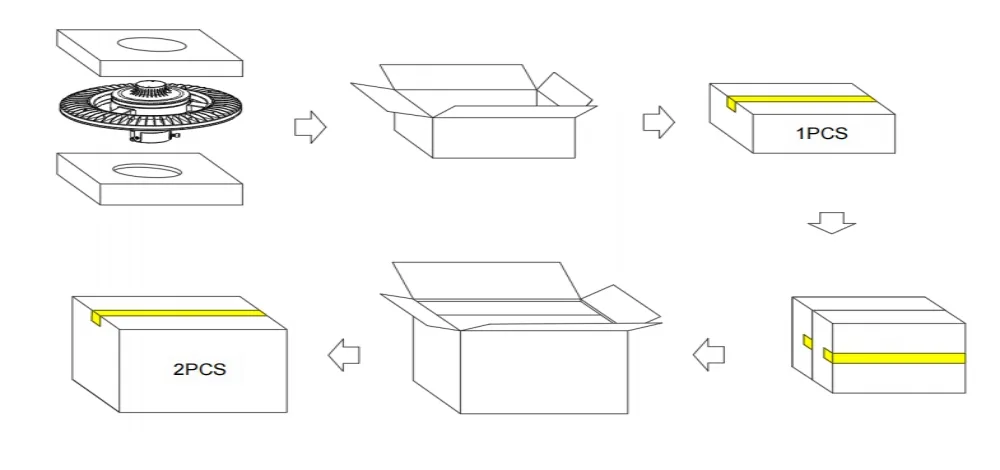

Packaging & Gallery
Frequently Asked Questions
Q1: Can I adjust the color temperature after installation?
Yes, the fixture features CCT selectable options (3000K/4000K/5000K). Simply power off the unit and rotate the cap to adjust.
Q2: Is this light suitable for coastal areas?
Yes, the housing is made of die-cast aluminum with a corrosion-resistant powder coat finish, designed for durability in various environments.
Q3: Does it support automatic dawn-to-dusk operation?
It includes a built-in photocell sensor that automatically controls the light based on ambient light levels.
Q4: What size pole does the mounting bracket fit?
The slip fitter mounting is specifically designed to fit 2 3/8" tenon poles.
Q5: What is the warranty period for this product?
This garden light comes with a 5-year warranty and a lifespan rating of 50,000 hours.

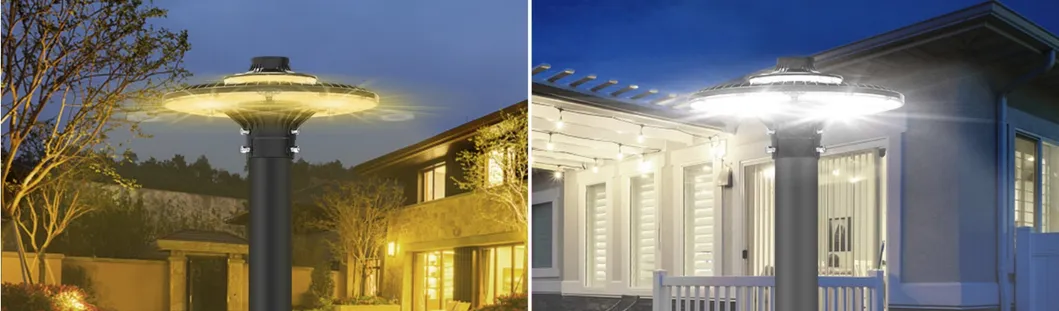

Q6: How does the dual-light design work?
The unique design combines high-efficiency bottom lighting for pathways with a decorative top lighting part for unique ambient effects.
