📋 Basic Specifications
Lamp Body Material
Die Casting Aluminum + PC Lens + Tempered Glass
Efficiency
150Lm/W - 180Lm/W
Input Voltage
100-277VAC 50/60Hz
LED Chips
SMD3030 / SMD5050
💡 Product Description
180Lm/W IP66 IK08 Photocell Post Top Parking Garden Pathway Highway Public Area Lighting
| Item Options |
30W / 50W / 60W / 80W / 100W / 120W / 150W / 180W / 200W / 240W / 300W |
| CCT (K) |
1700K / 2200K / 3000K / 4000K / 5000K / 5700K / 6500K |
| CRI |
> Ra80/70 |
| Smart Control |
3/5/7 pins NEMA base / Photocell sensor / LoRaWan / Zigbee / NB-Iot |
| Lifespan |
> 50,000 Hours |
🚀 Key Features
✨ High Efficiency: Reaches 180Lm/W high lumens efficiency for maximum energy saving.

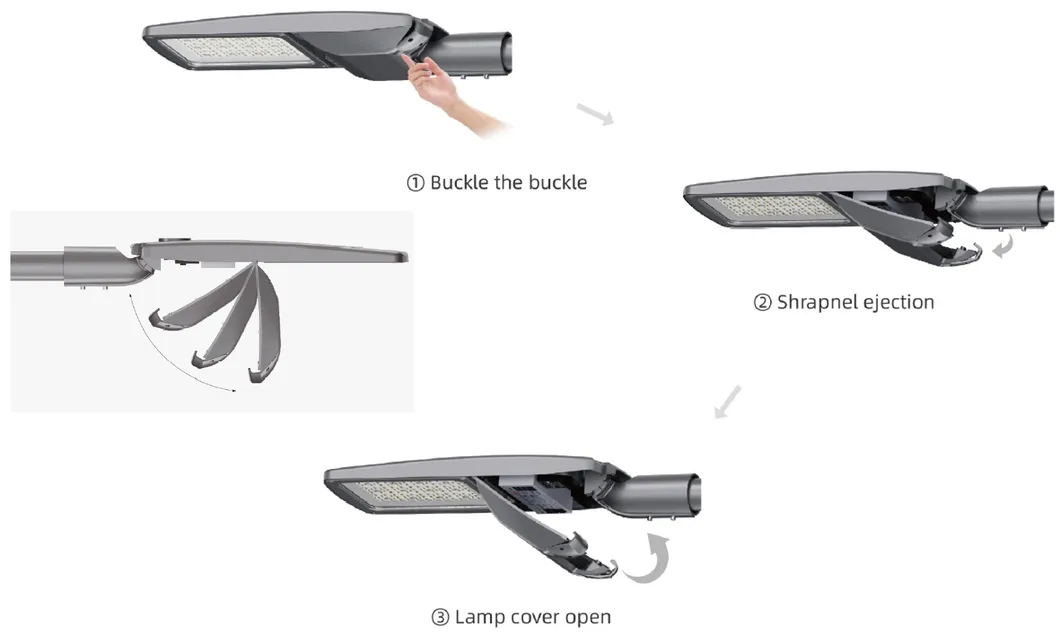

🛠️ Maintenance Friendly: Tool-free opening design for easy maintenance.
🛡️ Robust Protection: SPD 6KV/10KV/20KV surge protection and IK08 impact resistance.

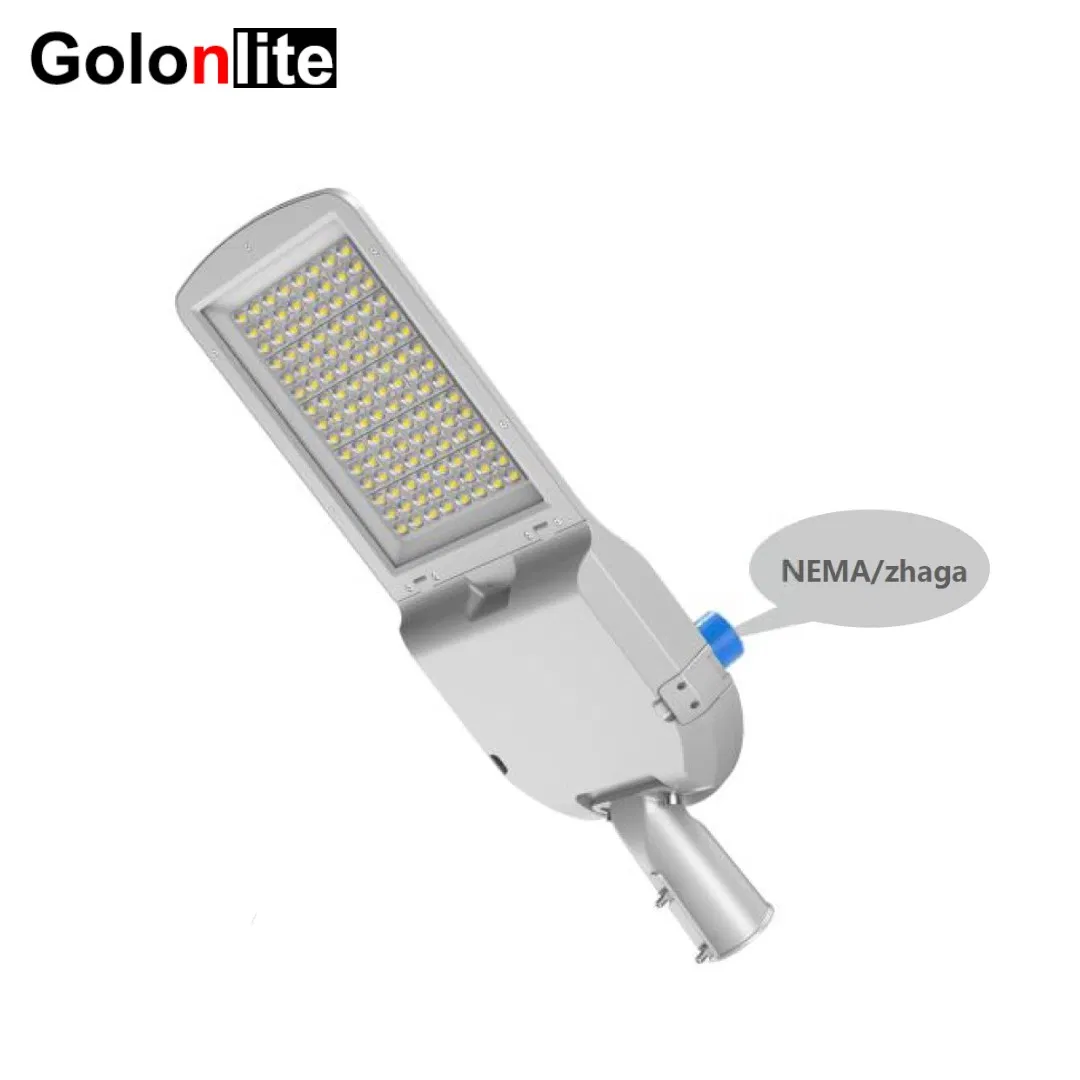

🌍 Smart Readiness: Support for NEMA socket and various IoT smart control systems.
🔧 Installation & Application
Flexible installation for 40/50/60mm pole diameters. Ideal for urban roads, industrial areas, residential zones, sidewalks, parking lots, schools, and gardens.
📊 Smart System Capabilities
Remote switch on/off and dimming control.
Electricity report for power consumption & saving analysis.
Real-time status tracking and fault alarms.
Group controlling and camera monitoring support.
❓ Frequently Asked Questions
What is the maximum luminous efficiency of these street lights?
The lights reach up to 180Lm/W, providing superior energy saving and brightness.
Are these lights suitable for coastal or harsh environments?
Yes, with an IP66 waterproof rating, IK08 impact resistance, and die-casting aluminum housing, they are built for durability.
What smart control options are available?
We support 3/5/7 Pins NEMA base, Photocell sensors, LoRaWAN, Zigbee, and NB-IoT systems.
Do you provide lighting simulations for projects?
Yes, we provide free Dialux lighting simulations and IES files to help with your project planning.
What is the warranty period for the LED street lights?
We offer flexible warranty options ranging from 5, 7, to 10 years based on your project requirements.
Can the beam angle be adjusted for different road types?
Multiple optical lenses are available (T2M, T3M, T4M) to suit various road distributions and lighting needs.
