📊 Basic Information
Model NO.FT-BLS66-W40
Emitting Color2700-6500K
DimmableWithout Dimmable
AppearanceSquare

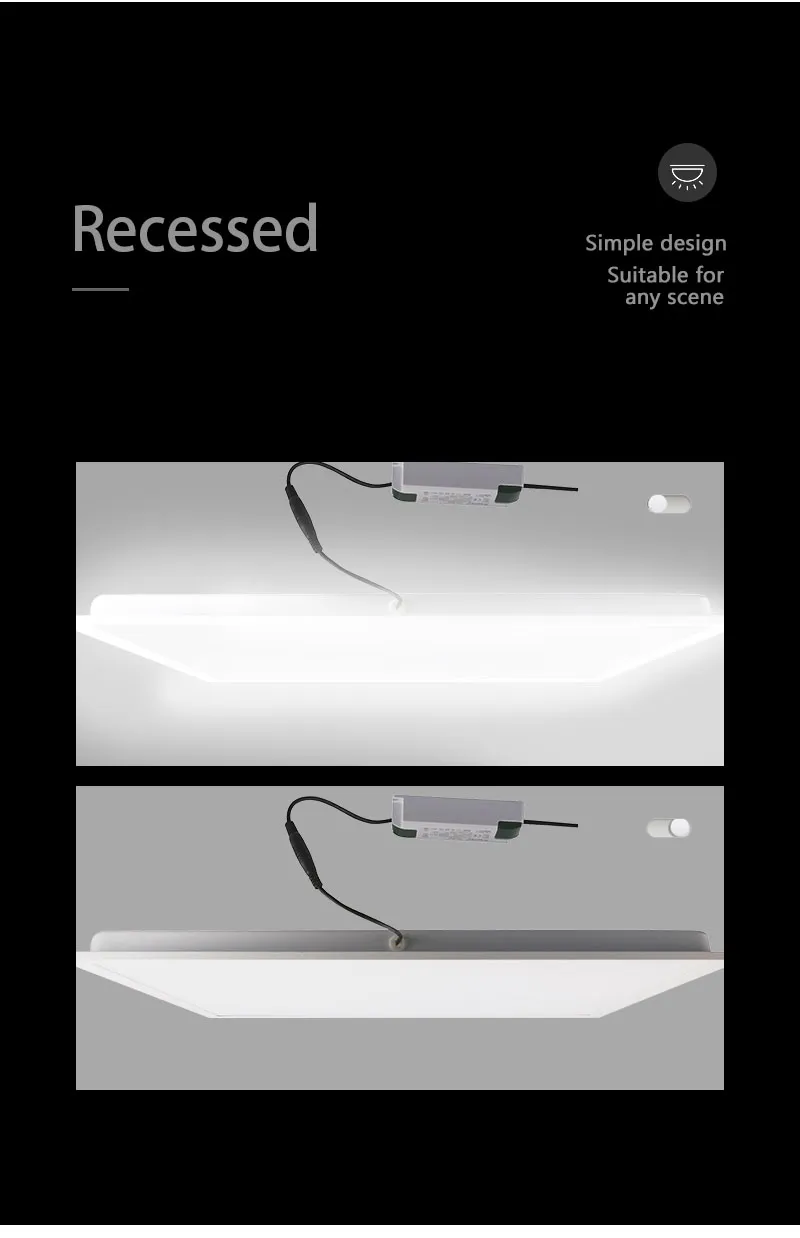

TypeRecessed
CertificationCE, RoHS, SAA, CB
Voltage100-240V
Beam Angle120°
Power Factor>0.9
CRI>80
Warranty5 Years
OriginChina
🌟 Product Features
High efficiency & energy saving. Saves more than 67% energy compared with traditional lamps.
Wide input voltage (200-240V) & Flicker-free technology.
Long life span over 50,000 hours using semiconductor chip technology.
Eco-friendly: No UV, IR, Hg, or Xe. Fully recyclable without EMI generation.

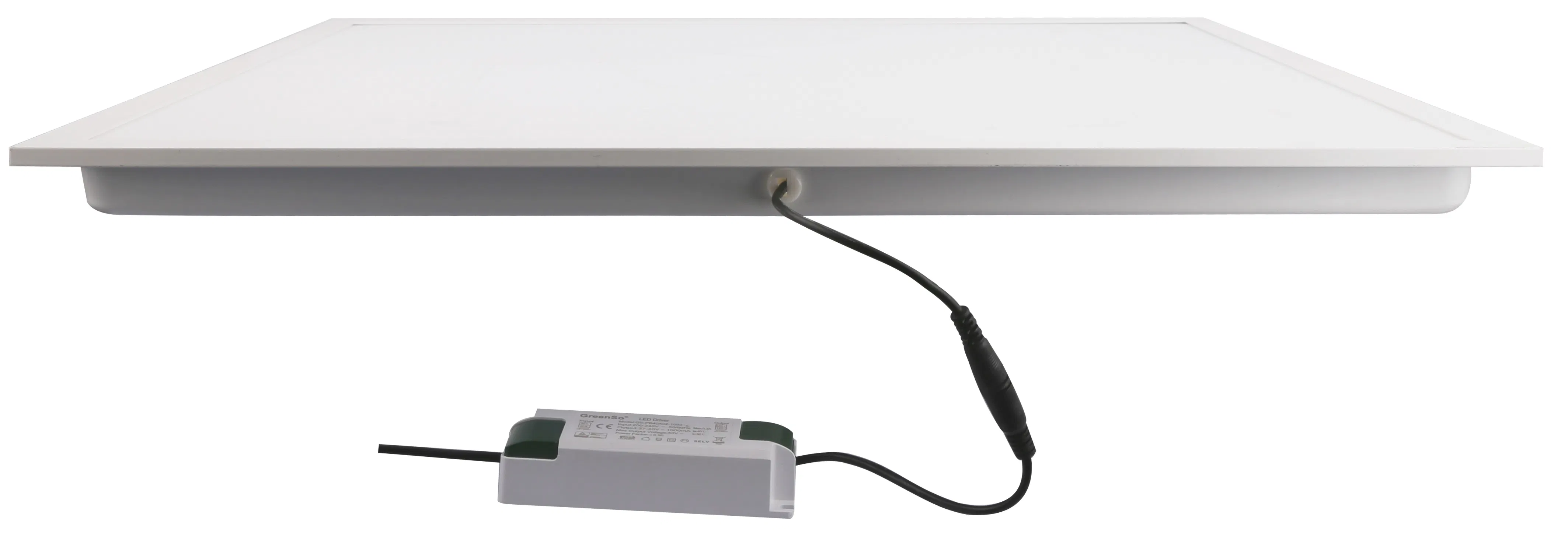

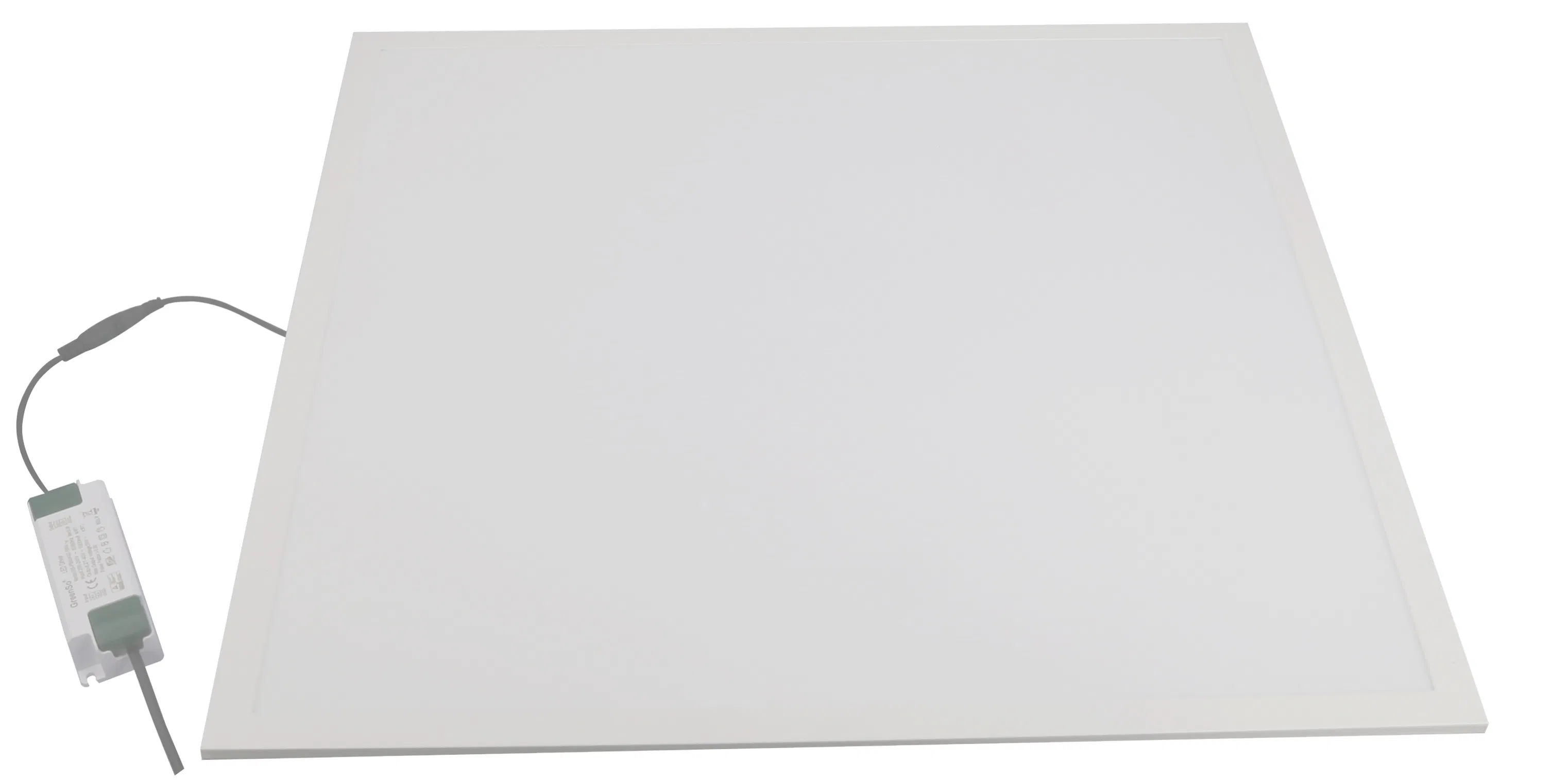

High-performance external constant current driver with a smooth, easy-to-clean frame.
🖼️ Product Gallery
⚙️ Technical Parameters
| Lighting & Power Specifications |
| Power / Consumption | 40W |
| Lumen Output | >4000LM |
| Input Voltage | AC200-240V 50/60Hz |
| Color Temperature | 3000K / 4000K / 6000K |

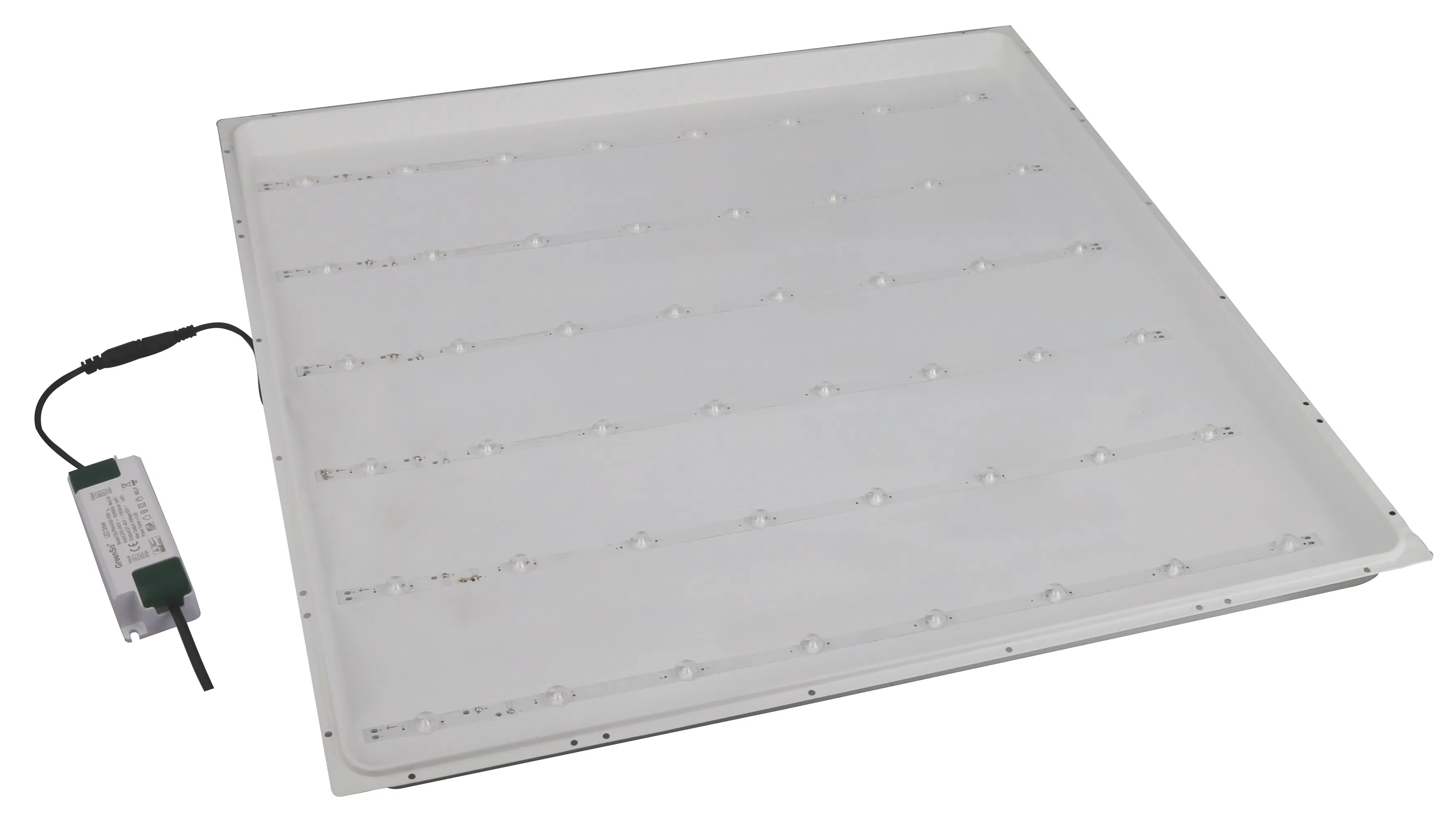

| LED Type & Chips | SMD 2835 / San'an |
| IP Grade | IP40 |

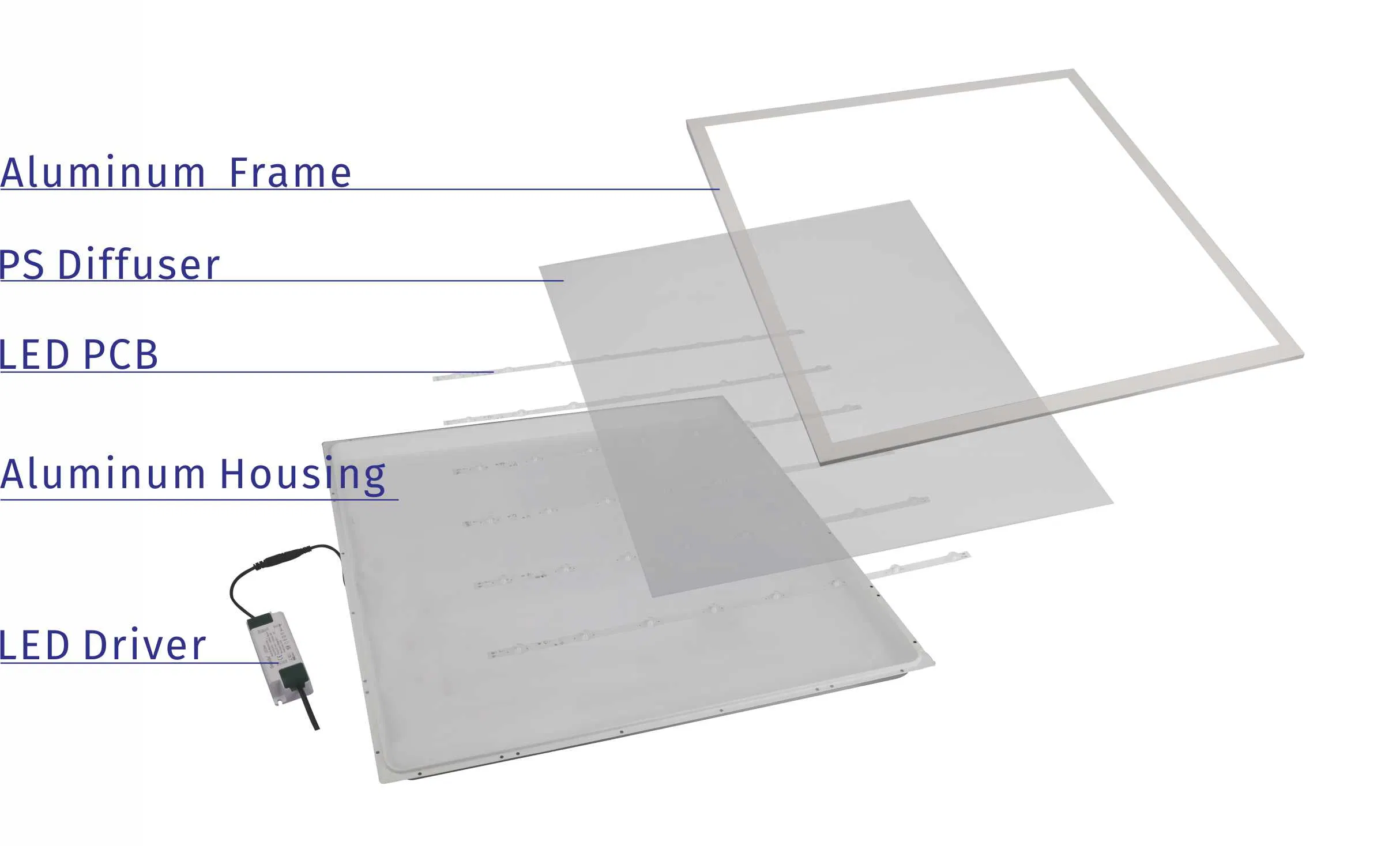

| Materials | PS + Aluminum |
| Energy Efficiency | A+ |

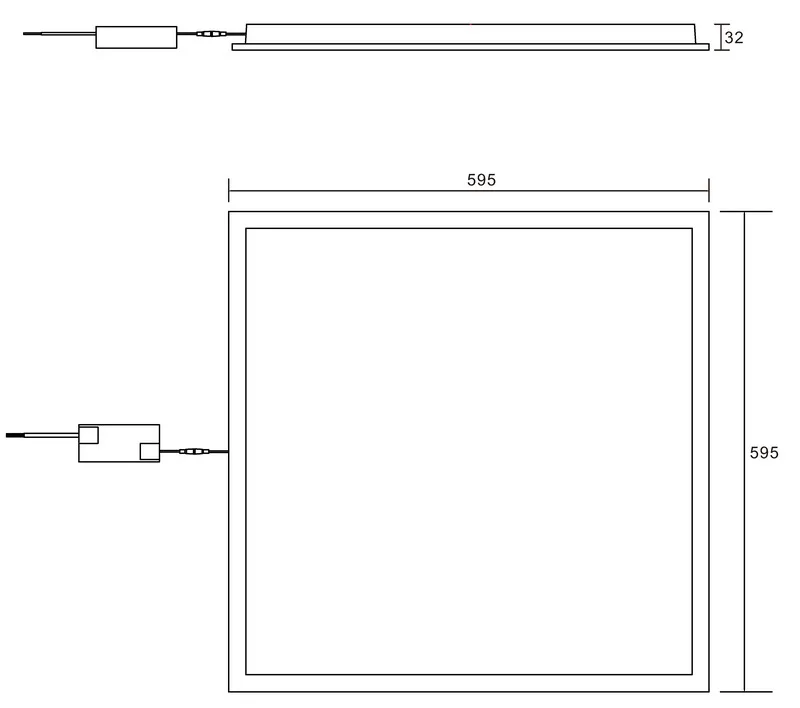

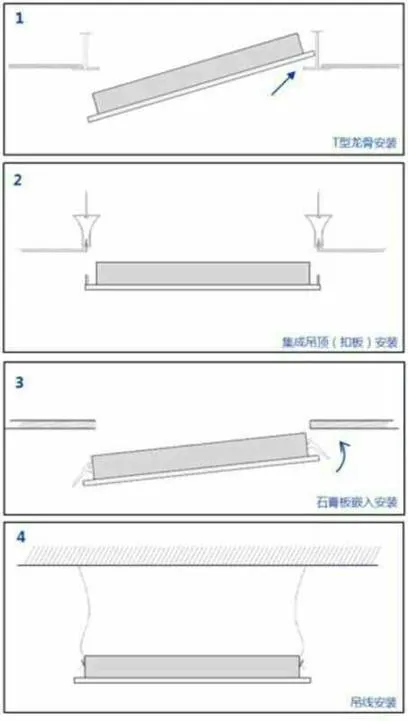

📐 Dimensions & Installation
Note: Installation should be performed by a professional electrician. Wiring: Brown (Line), Blue (Neutral), Yellow (Earth).
⚠️ Important Attention
Power off before installation to prevent electric shock.
Indoor use only (IP40). Avoid extremely high-temperature environments.
Over-temperature protection: Light may temporarily turn off if overheating occurs.
❓ Frequently Asked Questions
What is the warranty period for this LED panel?
The product comes with a 5-year warranty, covering proper installation and maintenance according to provided guidelines.
Is this LED panel light flicker-free?
Yes, the light is designed to be flicker-free, providing a stable and comfortable lighting environment.
What certifications does this product hold?
This model is TUV, CE, CB, RoHS, and SAA approved, ensuring high quality and safety standards.
Can this panel be used in damp areas?
This is an IP40 rated product, designed for indoor use only and should not be used in high-humidity or wet locations.
What are the typical applications for these lights?

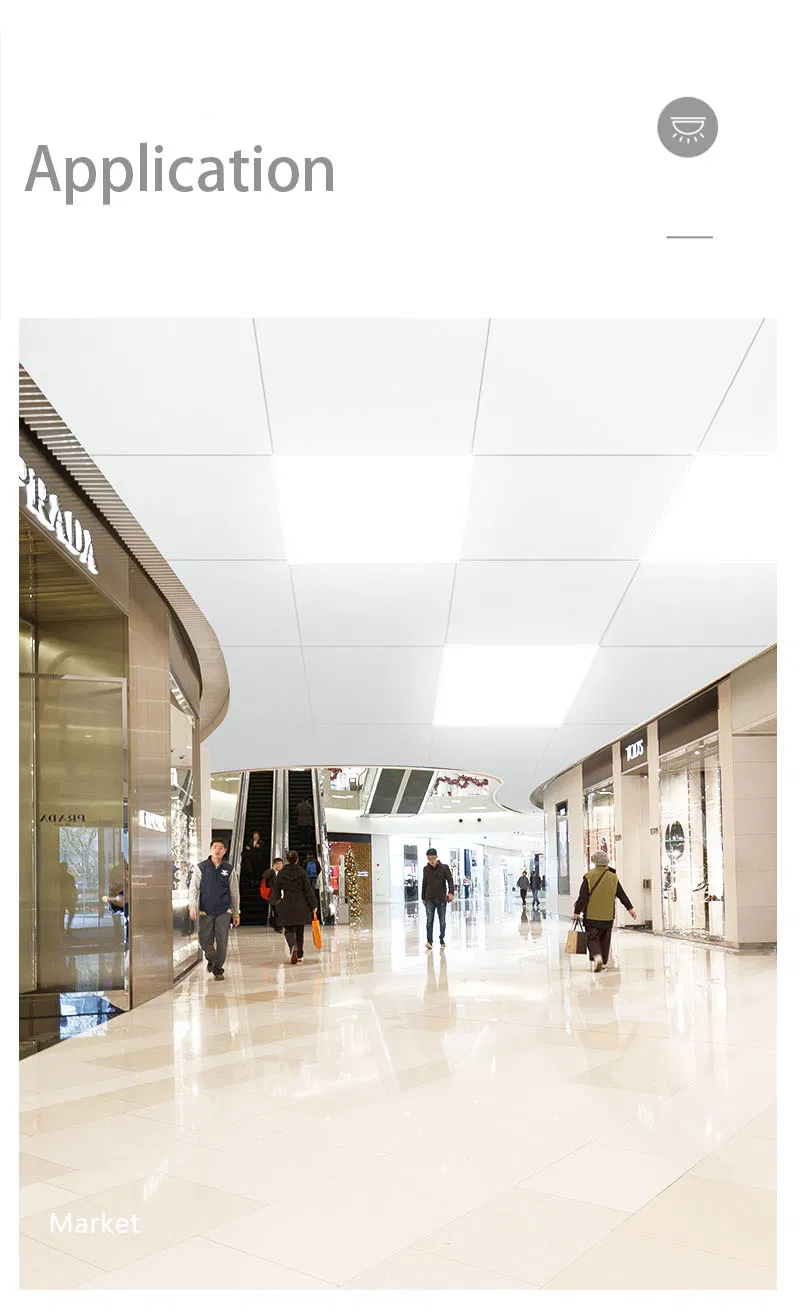

They are ideal for offices, conference rooms, corridors, reception areas, and recessed ceiling systems with grid sizes of 595x595mm.
How much energy does it save compared to traditional lighting?
Under the same illumination conditions, it saves more than 67% energy compared to traditional fluorescent lamps.
