| Model NO. | LCD-SST-100-LN2-65K | Color Temperature | Cool White (6500K) |
| IP Rating | IP67 / IP68 | Light Intensity | > 5,000 Lumens (Up to 33,560 Lm) |
| Power Range | 80W - 350W | Source Type | LED |
| Peak Intensity | 6.25 Mcd | Beam Divergence | 2° FWHM |
| Housing Material | Stainless Steel + Aluminum | Beam Range | Approx. 2500m - 5000m |
Advanced LED technology (80W-350W) serves as a superior replacement for traditional 1000W-5000W Halogen and Xenon lamps. These searchlights deliver powerful, concentrated illumination with significantly lower energy consumption.
| Feature | Details |
| Typical Models | LN2 Series (4M to 12M modules) |
| Lumen Output | Up to 16,080 LM - 33,560 LM |
| Candlepower | 3,673,851 cd |
| Voltage Options | AC 100-277V / DC 12V, 24V, 32V |
| Operating Temp | -30°C to +50°C |
| Pan/Tilt Range | Pan 0°~ 350°, Tilt -30°~ +30° (Remote Types) |
| Shock/Vibration | IK10 Impact / 5-6G Vibration Resistance |
A: Depending on the power and module configuration, the narrow 2° beam can reach distances between 2,500m and 5,000 meters under clear conditions.
A: Yes, they are built with marine-grade 1070 Pure Aluminum and stainless steel hardware, featuring IP67/IP68 ratings specifically for harsh marine weather.
A: Absolutely. Our 80W-350W LED units are engineered to provide equivalent or superior illumination to 1000W-5000W traditional lamps while saving significant energy.

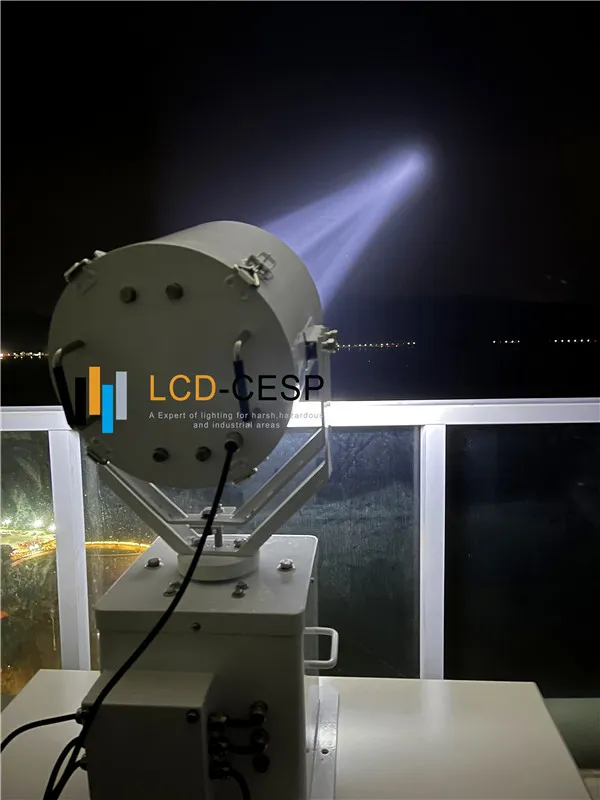

A: We offer various mounting kits including MD (Manual), MC (Manual Cabin Control), and EC (Electric Remote Control) types to suit different vessel requirements.
A: We provide a 5-year warranty for marine applications, ensuring long-term reliability for patrol boats, SAR vessels, and yachts.
A: Yes, while the beam is powerful, illumination distances can deteriorate if heavy smoke, thick fog, or smog is present in the environment.
