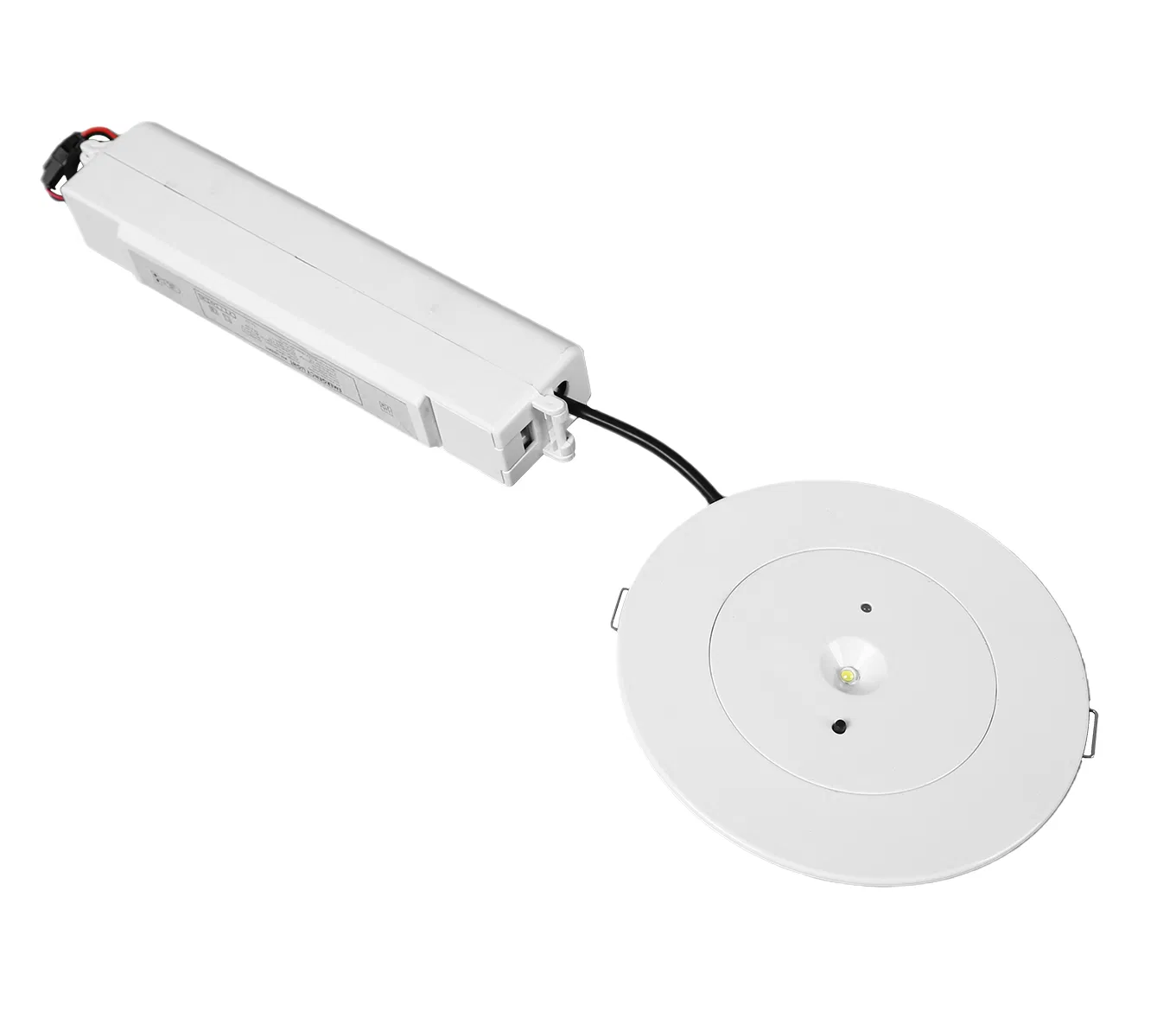

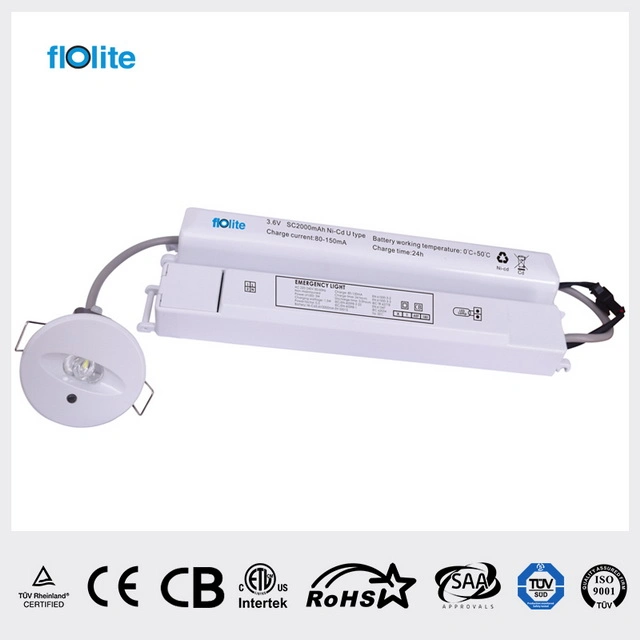

LED Backup Light, LED Emergency Recessed Downlight

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications

Model NO.
LEK02-3NC
Installation
Recessed
Color Temp
Cool White
IP Rating
IP20
Operation Mode
Non-maintained
Battery Type
Ni-Cd Battery
Material
Plastic
Certification
CE, RoHS, CB
Warranty
4 Years
Lumen
150lm
Charge Time
24 Hours
Production
3000PCS/Day

Product Description

CB Approved 3W LED Emergency light with Ni-Cd batteries 3Hours Backup

Relevant Standards

EN 60598-1EN 61000-3-2IEC 60598-1IEC61000-3-2
EN 60598-2-22EN 61000-3-3IEC 60598-2-22IEC 61000-3-3
EN 61347-1EN 62471IEC 61347-1IEC 62471

Technical Parameters

Model No.LEK02-3NCBatteryNi-Cd 3.6V 2000mAh
LED ChipsCREE XT-EFlux150lm
Power3WInputAC220-240V
Emergency3 HoursTestAUTO Test

Auto Test Functions

Commissioning test: Initial 24 hours charge followed by duration test.
Function test: 5-second test carried out every week.
Duration test: Full rated duration test every 13 weeks.

Frequently Asked Questions

Q1: How long is the emergency backup duration?

A: This model provides a minimum of 3 hours of emergency lighting during a power failure.

Q2: What type of battery is used in the LEK02-3NC?

A: It uses high-quality Ni-Cd 3.6V 2000mAh batteries designed for high-temperature stability.

Q3: Does this emergency light perform self-testing?

A: Yes, it features an AUTO Test function that performs weekly functional tests and quarterly duration tests.

Q4: What do the different LED indicator colors mean?

A: Permanent green indicates normal operation. Specific flashing patterns indicate battery or load failures as detailed in the manual.

Q5: Is it suitable for outdoor use?

A: No, this unit has an IP20 rating, meaning it is designed for indoor recessed installation.

Q6: What is the warranty period for this product?

A: The product comes with a 4-year warranty covering manufacturing defects.
