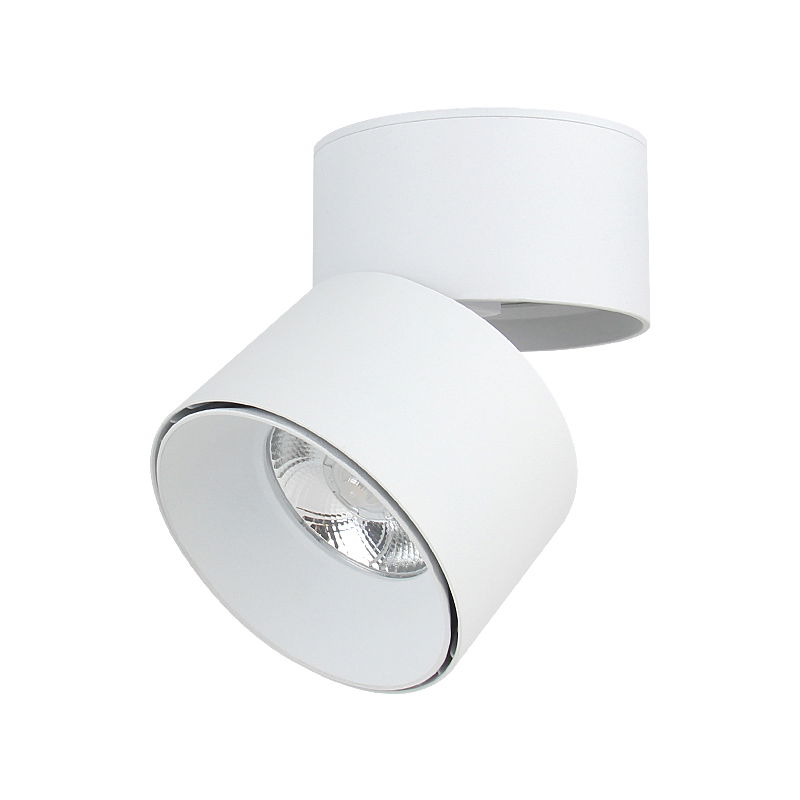

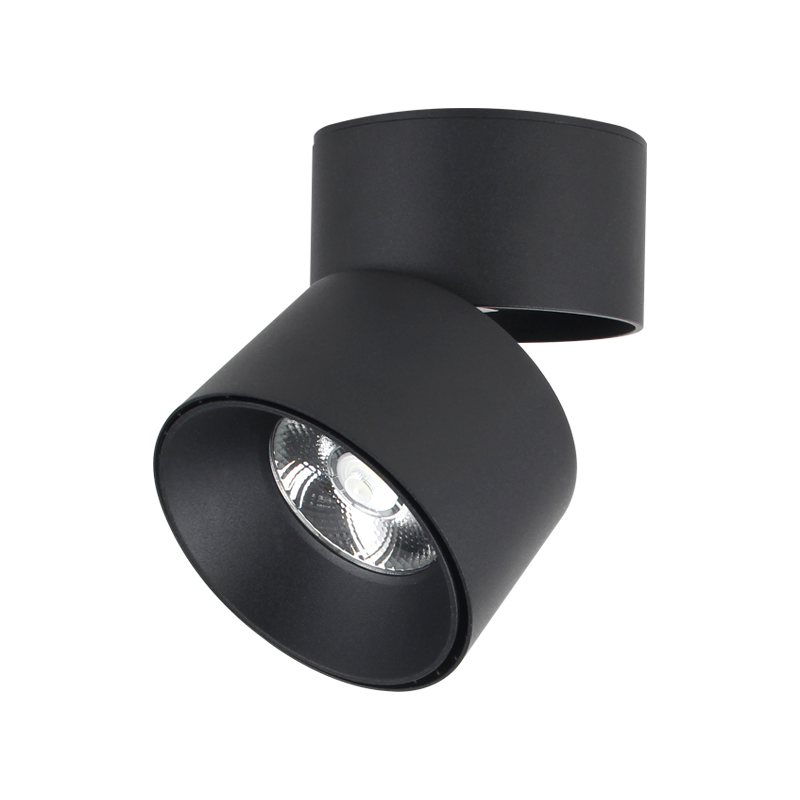

30W Track Lamp Ceiling LED Down Lighting

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Power:
15W
Emitting Color:
Ww/Cw
Base Type:
Track/Ceiling
Wire:
2wire/3wire/4wire
IP Rating:
IP22
Certification:
CE, RoHS
Input Voltage:
100-240V
LED Chips Brand:
Epistar
LED Source:
COB
CRI:
80
Material:
Die-Casting Alum
Lumen:
100lm/W
Warranty:
3 Years
Size:
57*90*109mm
Origin:
China
Production Capacity:
10000/ Days

Product Description

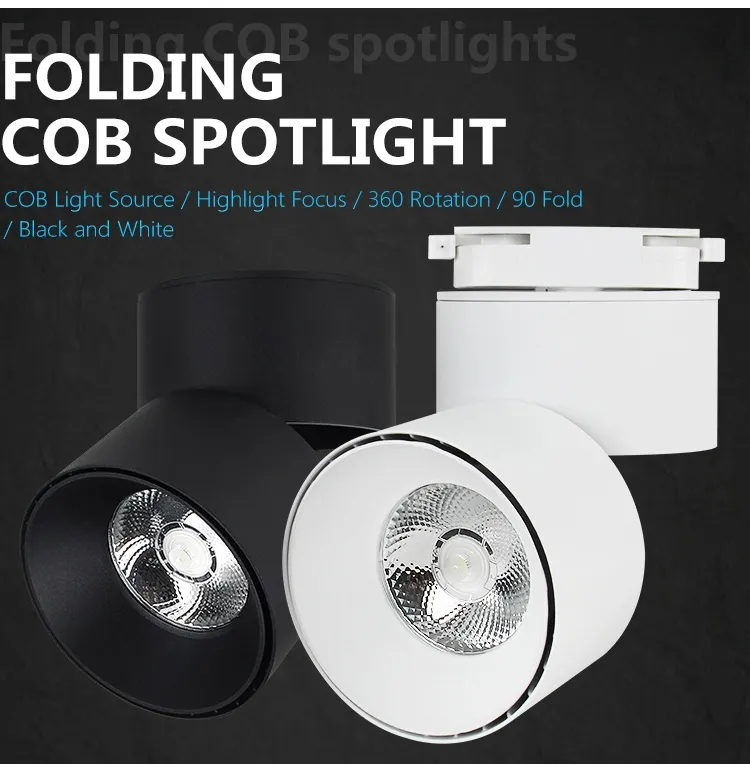

The COB track light fixtures (5W/7W/10W/15W/20W/30W) are modern LED spotlights designed for surface mounting. These track mount fittings are an ideal replacement for halogen systems in residential and commercial applications, offering excellent light output with low energy consumption and zero maintenance.

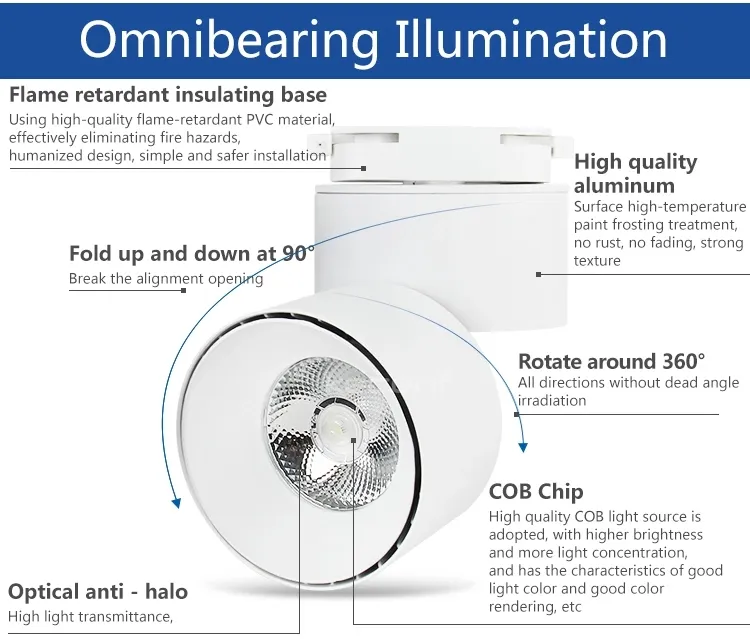

Main Features:

  • Perfect CFL and HID replacement for superior lighting.
  • Easy installation with screw-based ceiling-care design.
  • Uniform light distribution without ripple and anti-glare design.
  • High energy savings with a short payback period (less than one year).
  • Adjustable emitting degree combined with the latest COB LED technology.

Technical Parameters

Watt Voltage Lumens CRI Material Source Size (mm) Install
5WAC100-240V100lm/W80Die-casting AlumCOB57*90*109Ceiling/Track
7WAC100-240V100lm/W80Die-casting AlumCOB57*90*109Ceiling/Track
10WAC100-240V100lm/W80Die-casting AlumCOB57*90*109Ceiling/Track
15WAC100-240V100lm/W80Die-casting AlumCOB57*90*109Ceiling/Track
20WAC100-240V100lm/W80Die-casting AlumCOB57*90*109Ceiling/Track
30WAC100-240V100lm/W80Die-casting AlumCOB65*105*114Ceiling/Track

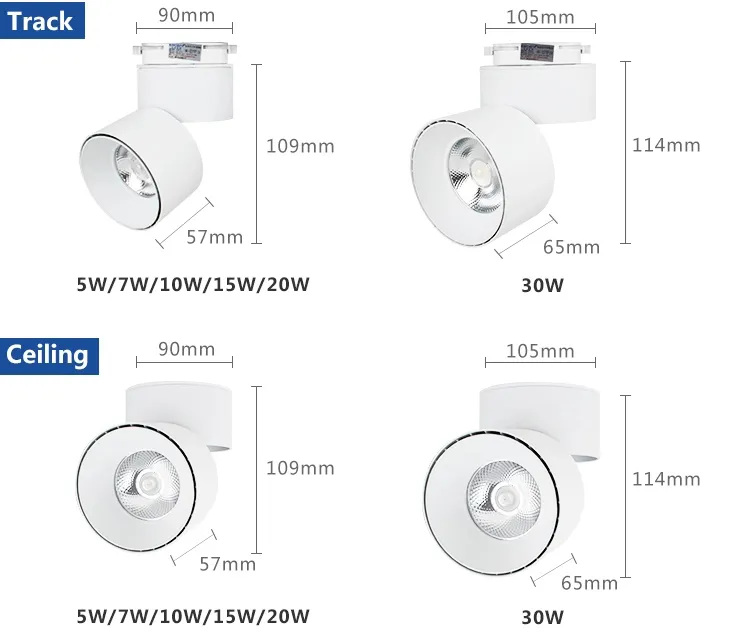

Visual Reference & Dimensions

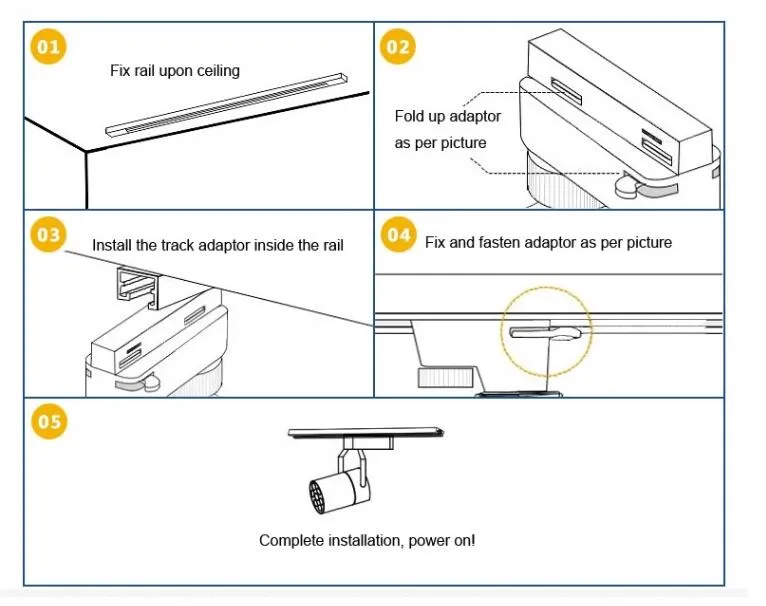

Installation & Application

Process Our installation process is streamlined for efficiency:

Payment T/T, Western Union, and PayPal are accepted.

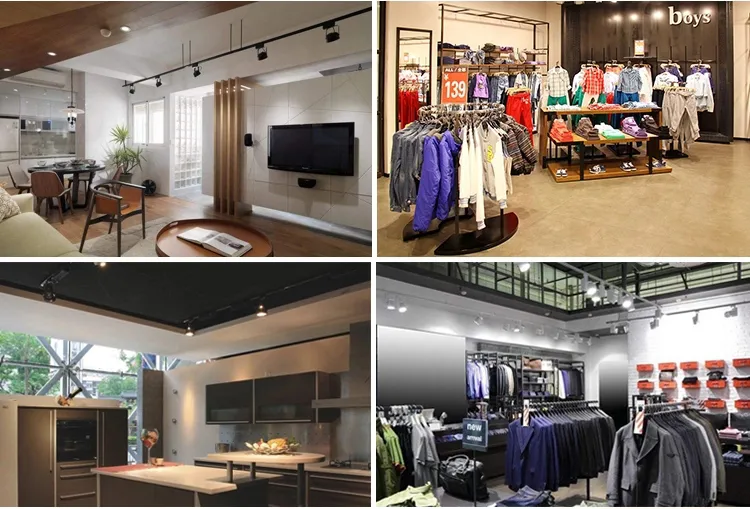

Application Widely used in home indoor lighting and building decorative projects such as: kitchens, corridors, hotels, clubs, meeting rooms, offices, hospitals, schools, commercial lighting, shopping malls, and exhibition stands.

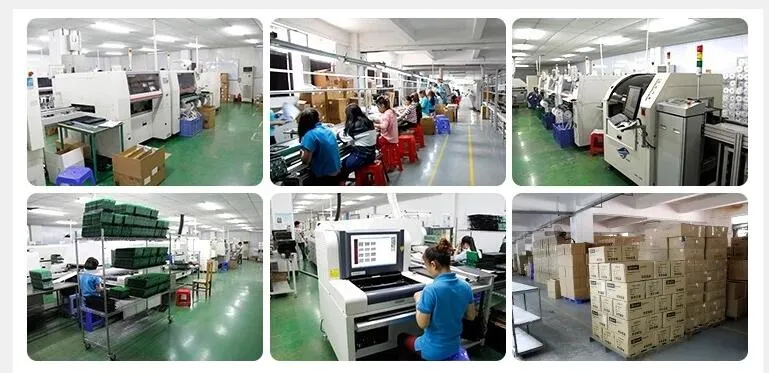

Manufacturing Excellence

We are a professional LED lighting enterprise integrating R&D, production, sales, and after-sales service. We are devoted to environmental protection, energy saving, and creating a more beautiful world. All products pass CE & RoHS standards and are widely used in supermarkets, hotels, and offices worldwide.

Frequently Asked Questions

Can I have a sample for these LED track lights?
Yes, we welcome sample orders for testing. Mixed samples are acceptable.
What is the lead time for production?
Samples take 3-5 days, while mass production typically requires 7-10 days.
What is the minimum order quantity (MOQ)?
Our MOQ is as low as 1 piece for standard models.
How are products delivered and how long does it take?
Samples are usually sent via DHL/UPS/FedEx and typically arrive within 3-5 days.
Can we engrave our own logo on the lights?
Yes, we provide customization services to engrave customer logos on the products.
How do you handle faulty products?
Our lights are produced under a strict quality control system with a defect rate of less than 0.2%. If a failure occurs during the warranty period, we will provide new replacements with your next order.
