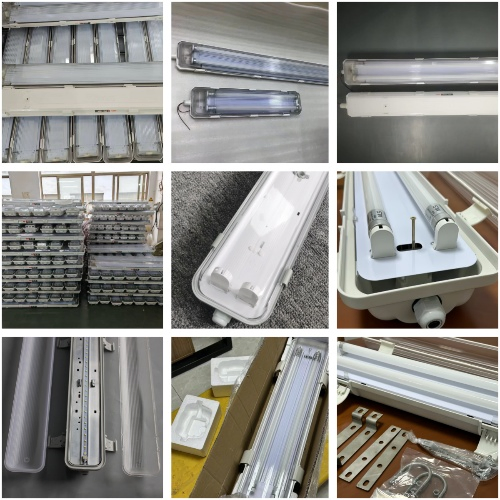

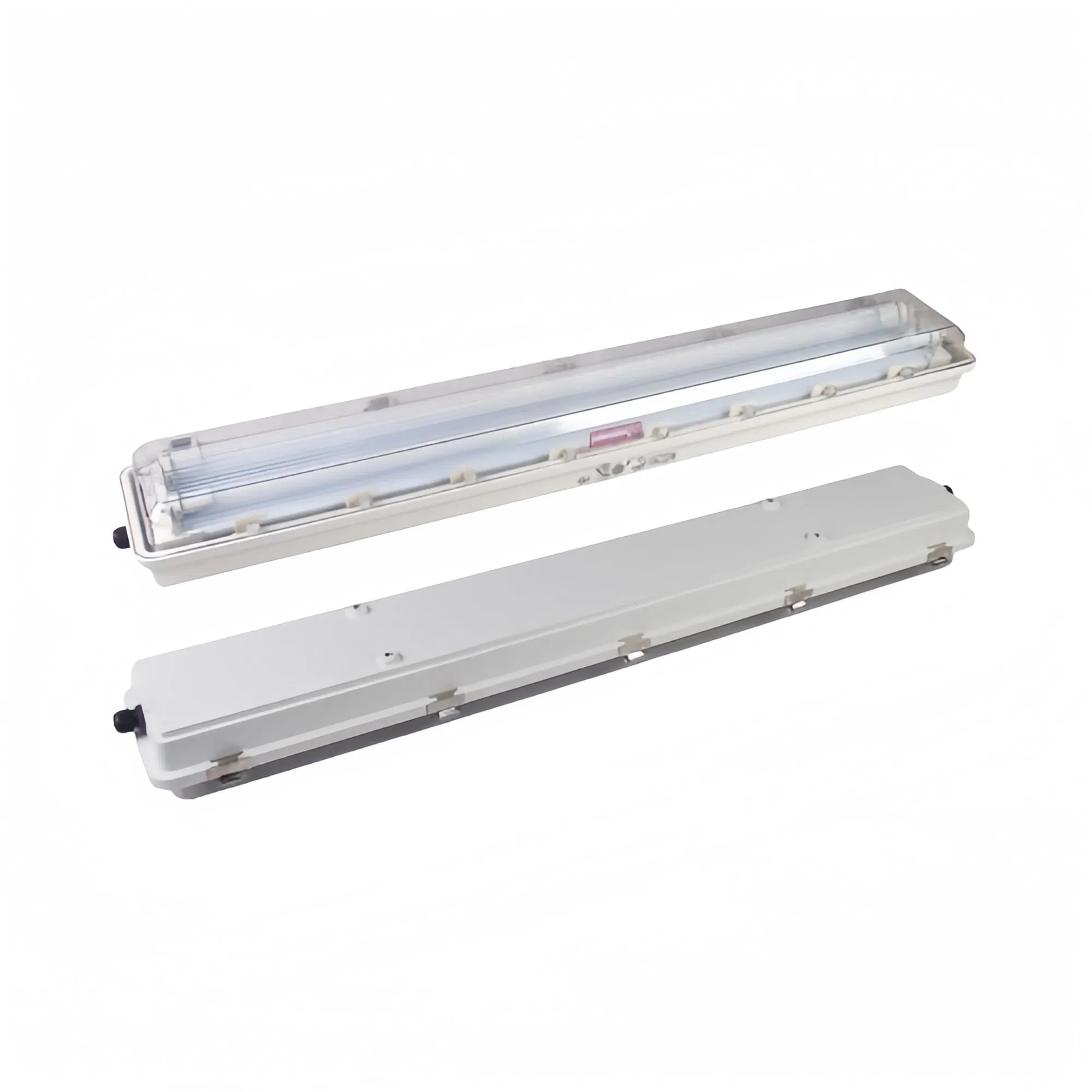

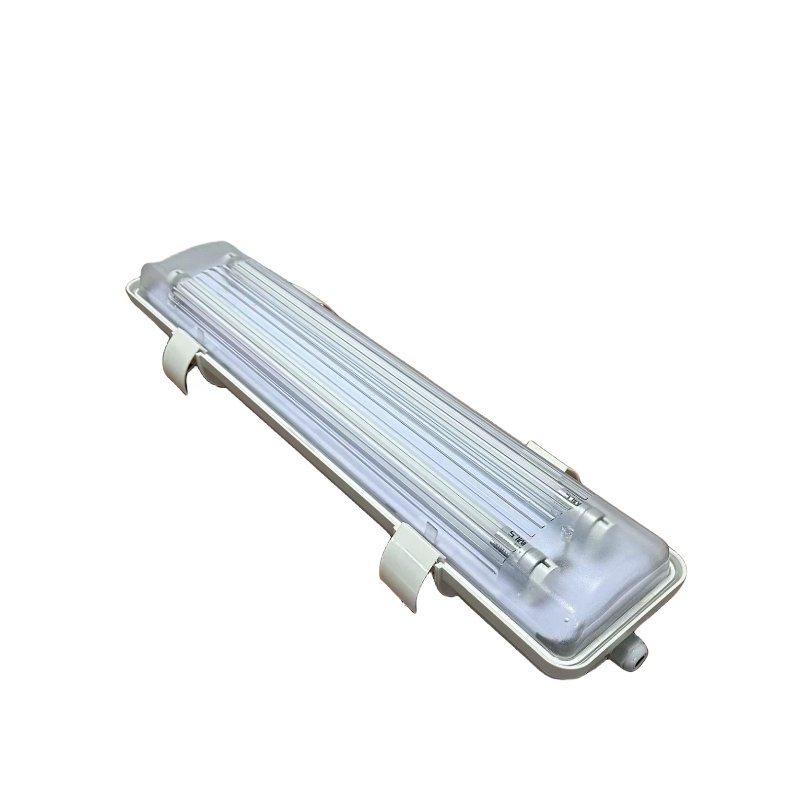

LED Explosion Proof Double Tube Emergency Light ATEX Fluorescent Batten Lamp 18*2W 24*2W 32*2W for Power Facilities

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.
BYS
Irradiated Area
≥30m²
Input Voltage
220V
Power
60-100W
Color Temp
Warm White
Certification
CCC, CE, C-tick, RoHS
Beam Angle
120 Degree
Life Hour
100,000h
Ex-Proof Mark
Ex Demb Iic T6 Gc/Ex Tb Iiic T80℃
Product Description

Why choose purification fluorescent lamps?

From the perspective of green lighting design, LED purification lamp materials are environmentally friendly, offering low power consumption, superior luminous efficiency, and high brightness compared to traditional grille lights. Semiconductor lighting is recyclable, significantly contributing to sustainable economic and social development.

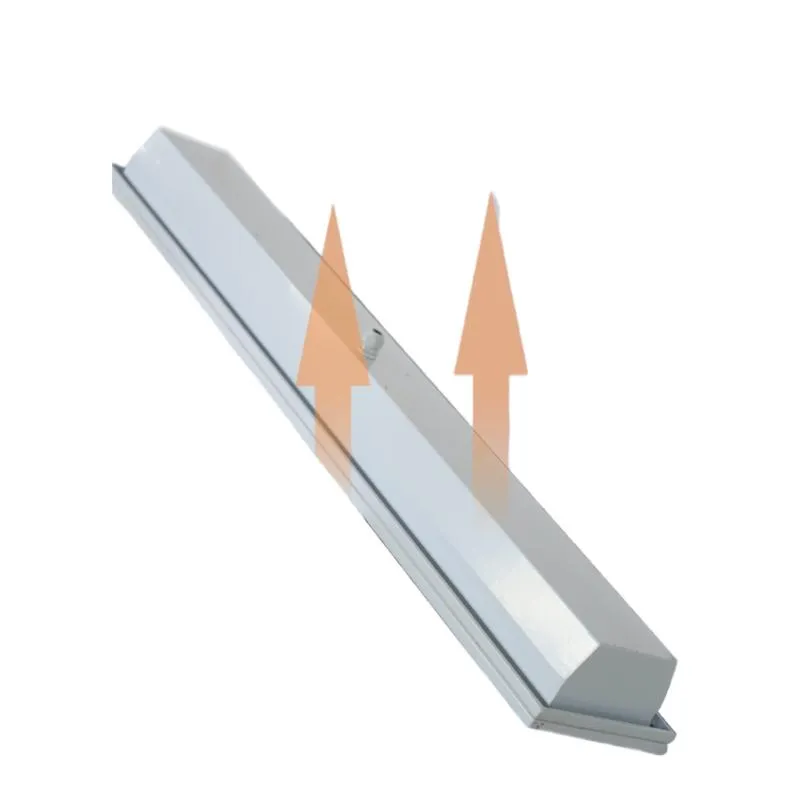

High Quality Materials

High-quality materials, efficient heat dissipation

Thickened iron lamp body with a high-temperature paint process. The anti-corrosion and anti-rust body directly contacts the heat source to strengthen heat dissipation, greatly extending the lamp's service life.

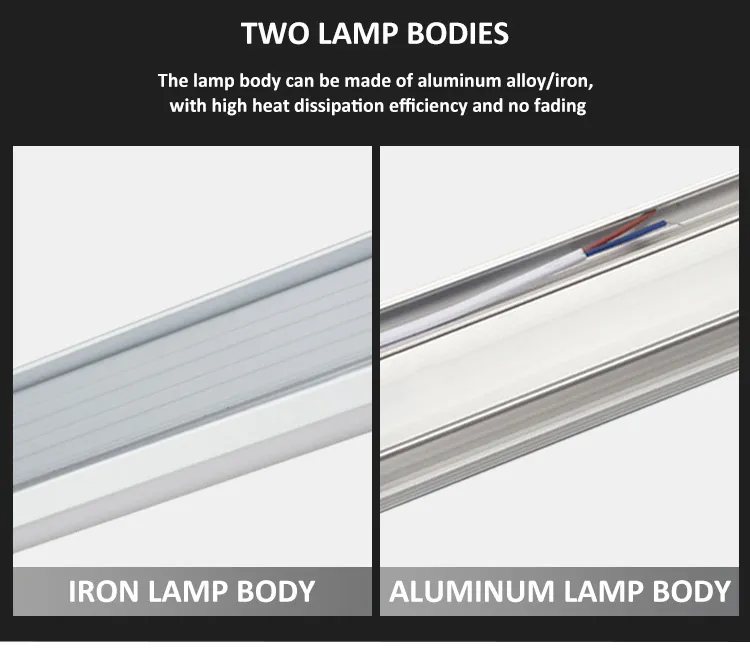

Integrated Design

Integrated lamp body design

Environmentally friendly thickened aluminum, real dustproof. Tightly sealed to prevent dust, moisture, and mosquitoes from entering, protecting the internal components.

Acrylic Mask

Acrylic transparent mask

High quality optical material lenses. Integrated optical lens provides excellent light transmission, strong impact resistance, and a long service life. The aluminum alloy frame is lighter and thinner.

Product Parameters

This LED is built to perform effectively and economically in areas requiring an increased degree of safety. It consumes up to 85% less energy than conventional lighting.

Rated VoltageAC110-220V, DC12V/24V Power Factor>0.95PF
Rated Power1x16/2x16/1x8/2x8W/3*30W Operating Temp-30~50°C
Protection LevelIP66 Lighting Angle120°
Light Efficiency120Lm/W Life span100,000 Hours

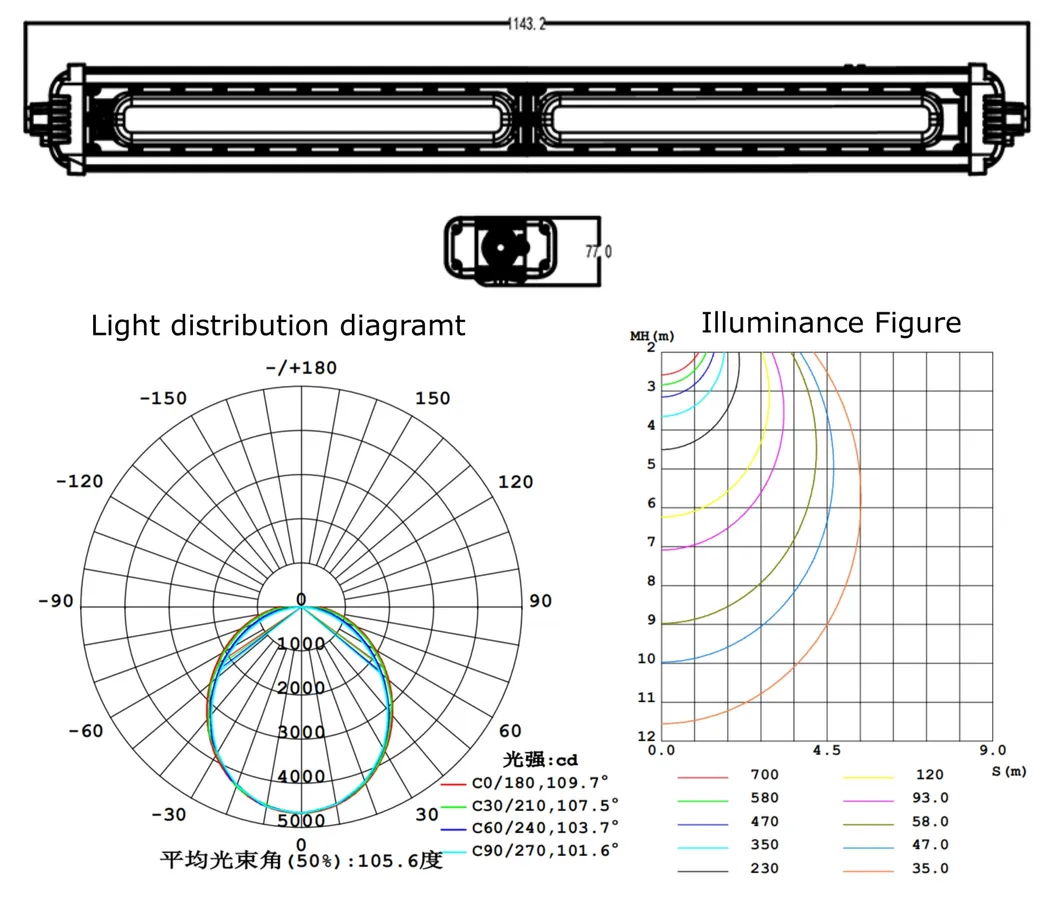

Parameter Details
Installation & Logistics

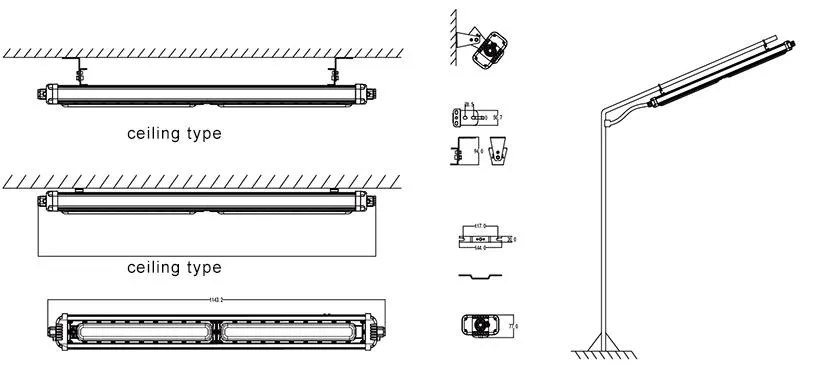

Installation
Package Item Specification Weight/Qty
Outer Carton Size 120*22*29.2cm A box of four
Gross Weight 21kg Per carton

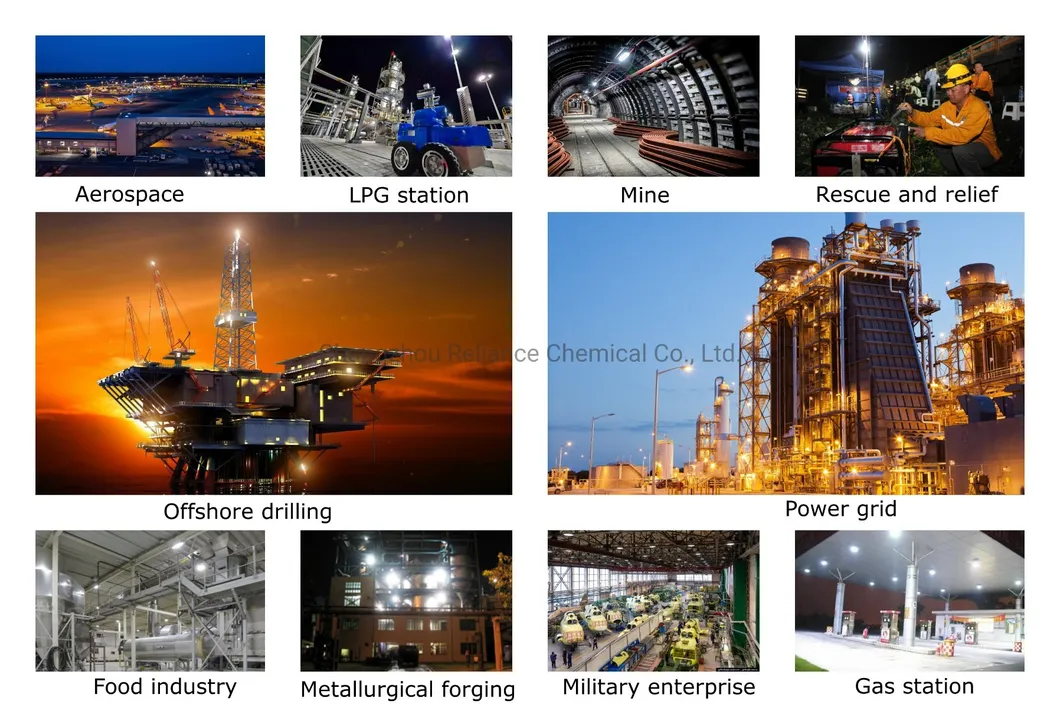

Application Scenarios
  • Abrasive Blasting
  • Chemical Plants
  • Dispensing Areas
  • Distilleries
  • Drilling Rigs
  • Oil Refineries
  • Paint Booths
  • Food Processing
Application Scenarios
Frequently Asked Questions
1. What is the protection rating of this lamp?
The lamp body features an IP66 protection level and anti-corrosion level up to WF2, ensuring it never rusts or corrodes.
2. How long is the lifespan of the LED?
The LED operating life is approximately 100,000 hours, which is 10 times longer than traditional fluorescent lamps.
3. What certifications do these lights have?
Our products are equipped with ATEX, CE, CCC, and RoHS certifications to ensure safety in hazardous environments.
4. Are samples available for testing?
Yes, samples are available. We can also provide customization for a single unit sample to meet your specific requirements.
5. What are the available installation methods?
It supports various methods including ceiling mounting, suction wall mounting, and U-shaped anti-vibration bracket mounting with adjustable angles.
6. Is there a warranty for this product?
We provide a 5-year warranty along with a complete testing and after-sales mechanism for all our explosion-proof lighting fixtures.
