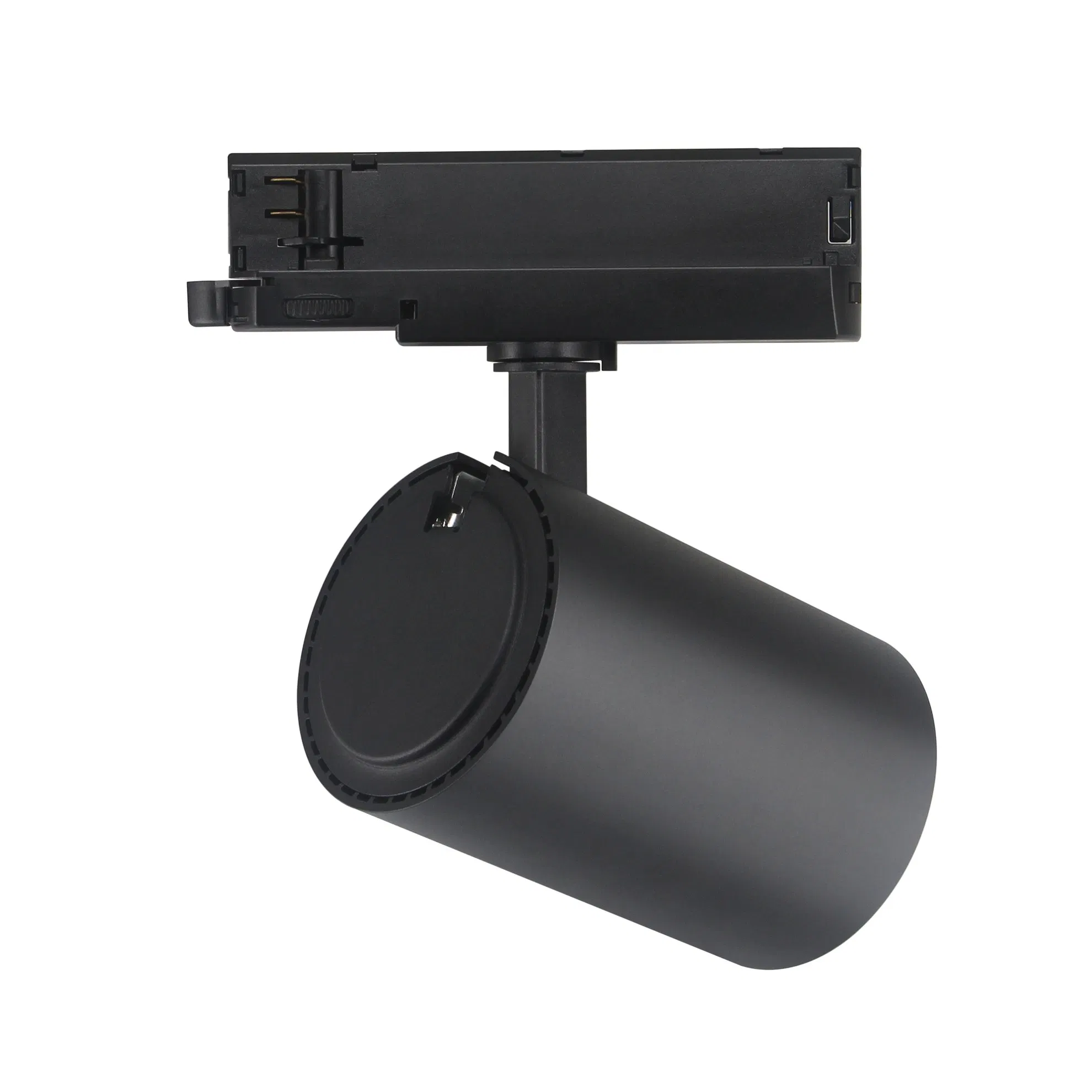

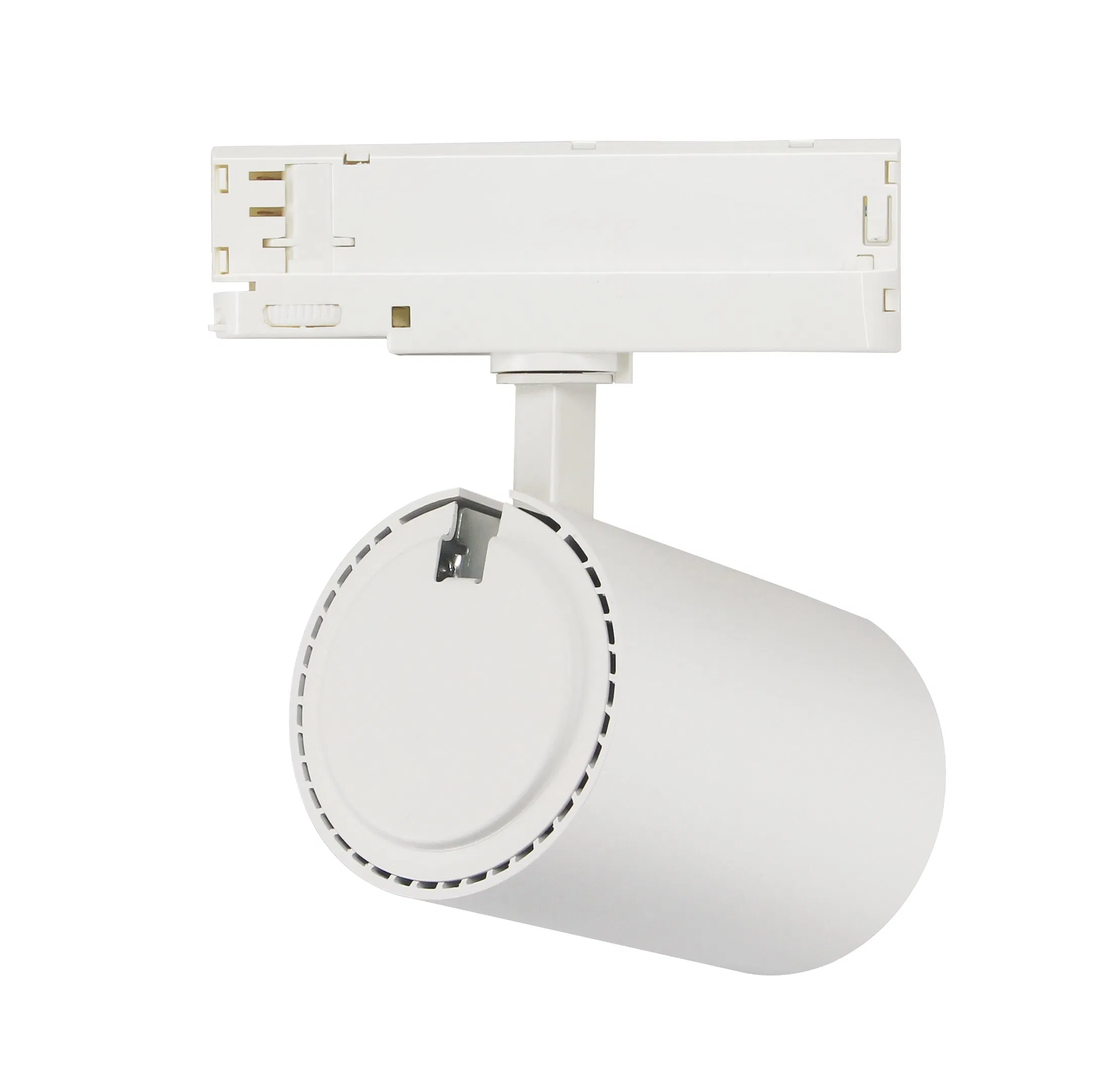

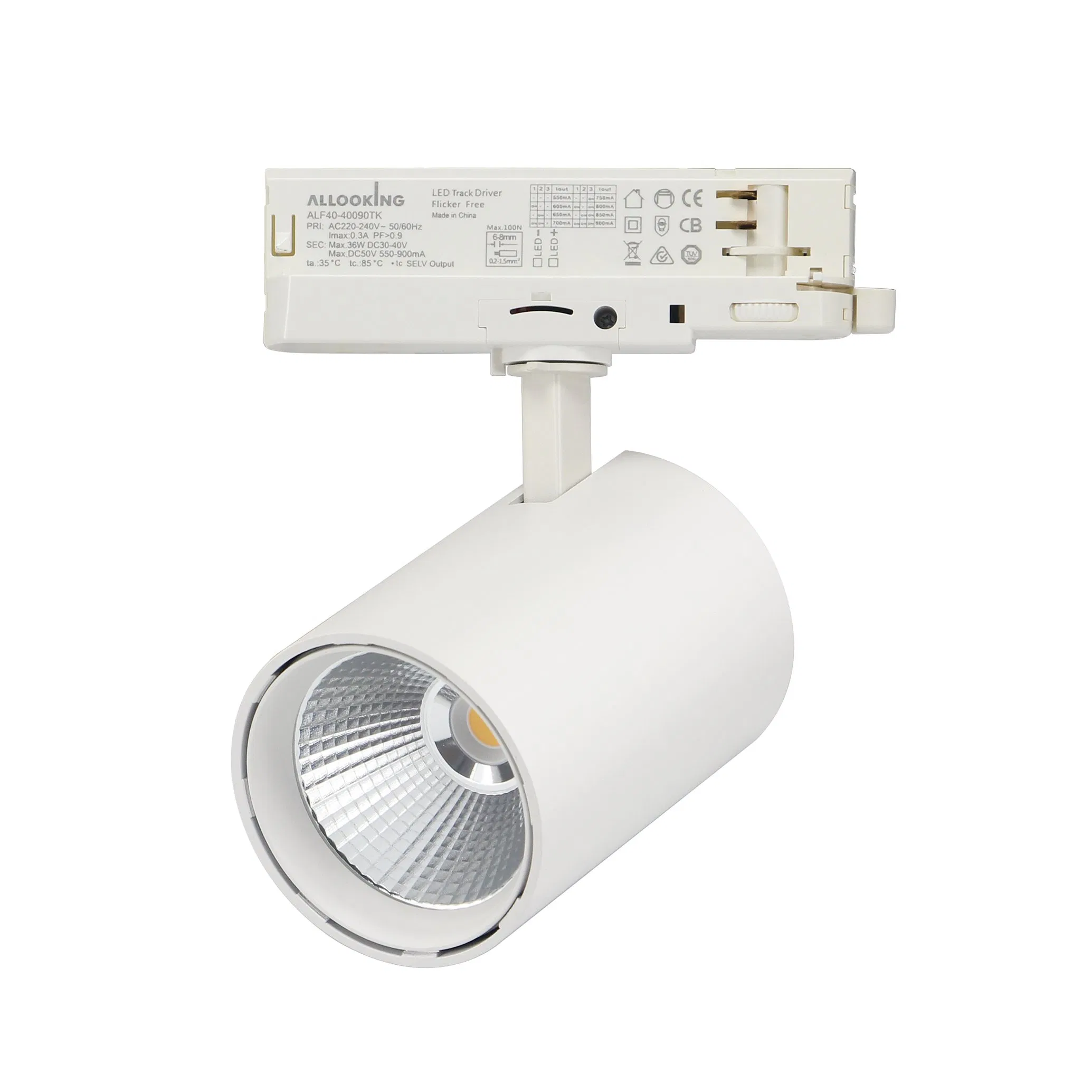

Aluminum Retail Track Lighting 10W 20W 30W 35W COB Tracklight LED Track Spot Light

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications
Model NO.
PL-TL-HP-35W
Power
35W
Emitting Color
White
Base Type
Adaptor
Wire Options
2wires, 3wires, 4wires
IP Rating
IP44
Input Voltage
100-240V
LED Chips Brand
CREE
Housing Color
White, Black, Grey
Dimensions
D95 H160mm
Product Description

Aluminum Retail COB Tracklight LED Spot Light (10W-35W)

Our high-performance COB LED track lights are designed for professional retail and commercial environments. Featuring original Citizen/CREE/Osram COB technology, these fixtures provide superior anti-glare lighting solutions for various interior applications.

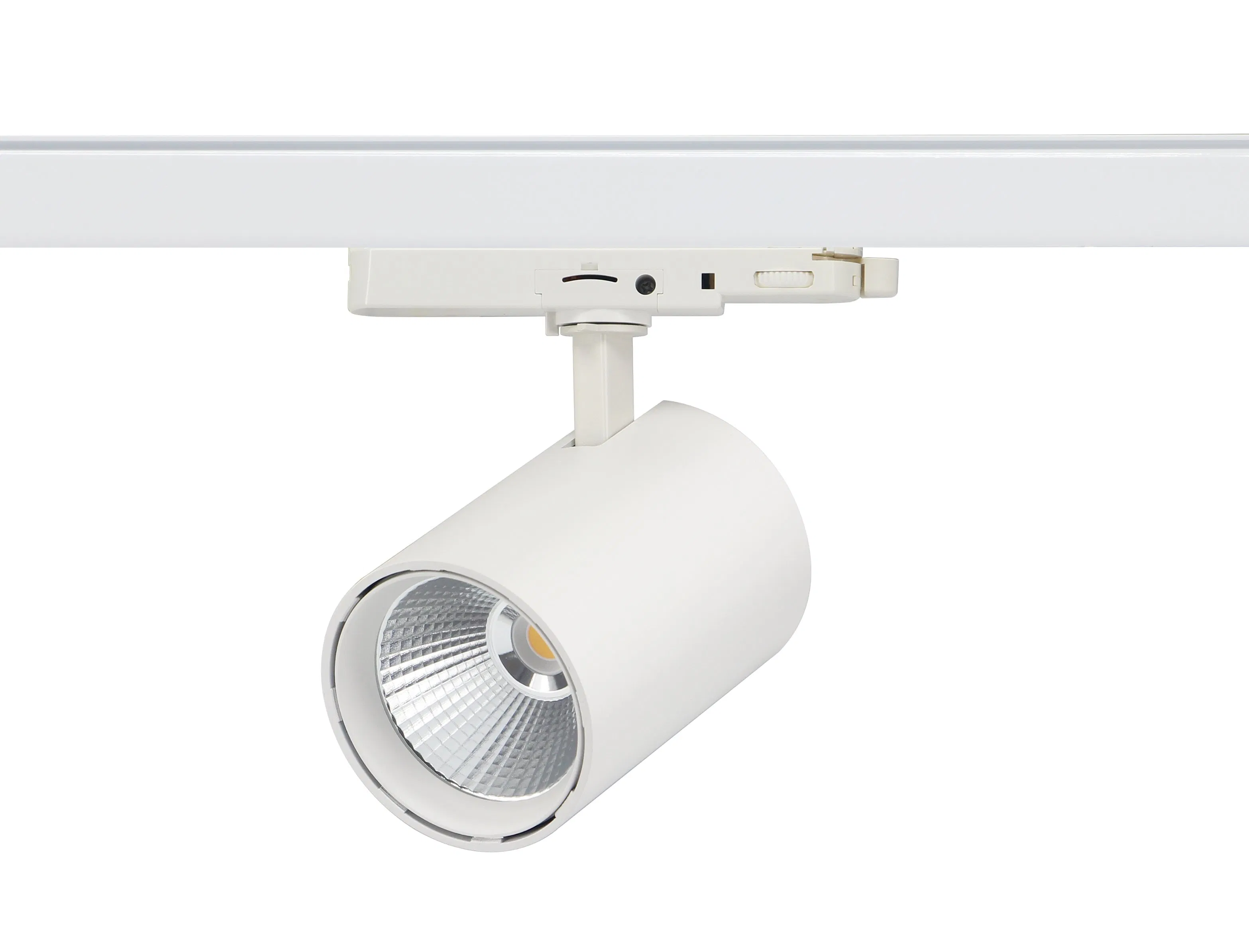

LED Track Light Main Image

Available in 4-wire (3-phase) and 3-wire configurations, these lights offer high lumen output with an aluminum heat sink design for optimal thermal management. Perfect for high-end boutiques, galleries, and showrooms.

Technical Parameters
Feature Details Electrical Data
LED Source Osram COB / CREE Input: AC200-240V
Color Temp 3000K / 3500K / 4000K Frequency: 50/60Hz
CRI 90+ Ra Wattage: 35W
Luminous Efficacy >130lm/W Power Factor: ≥ 0.92
Beam Angle 15° / 24° / 36° / 60° Non-Dimmable Standard
Track Light Detail 1

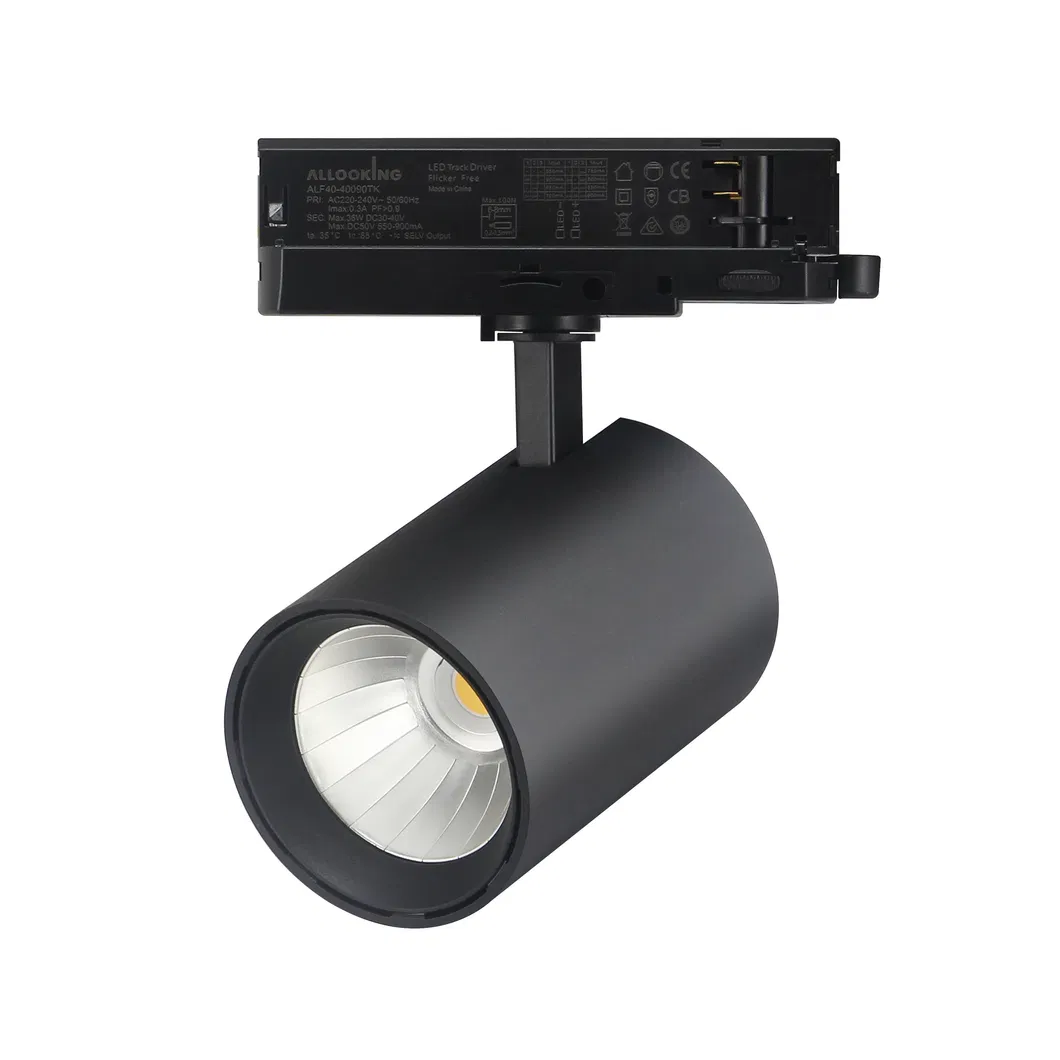

Track Light Detail 2
Typical Applications
  • Retail Store Lighting
  • Commercial Galleries
  • Accent Spotlighting
  • Showrooms & Salons
  • Energy Saving Programs
  • General Interior Lighting
Application 1

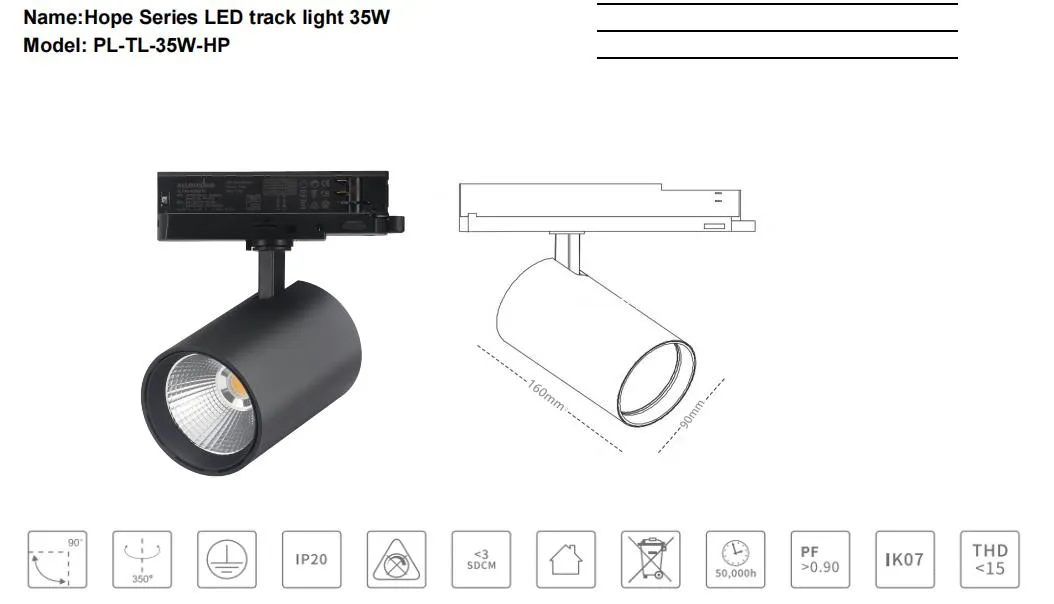

Application 2
Application 3

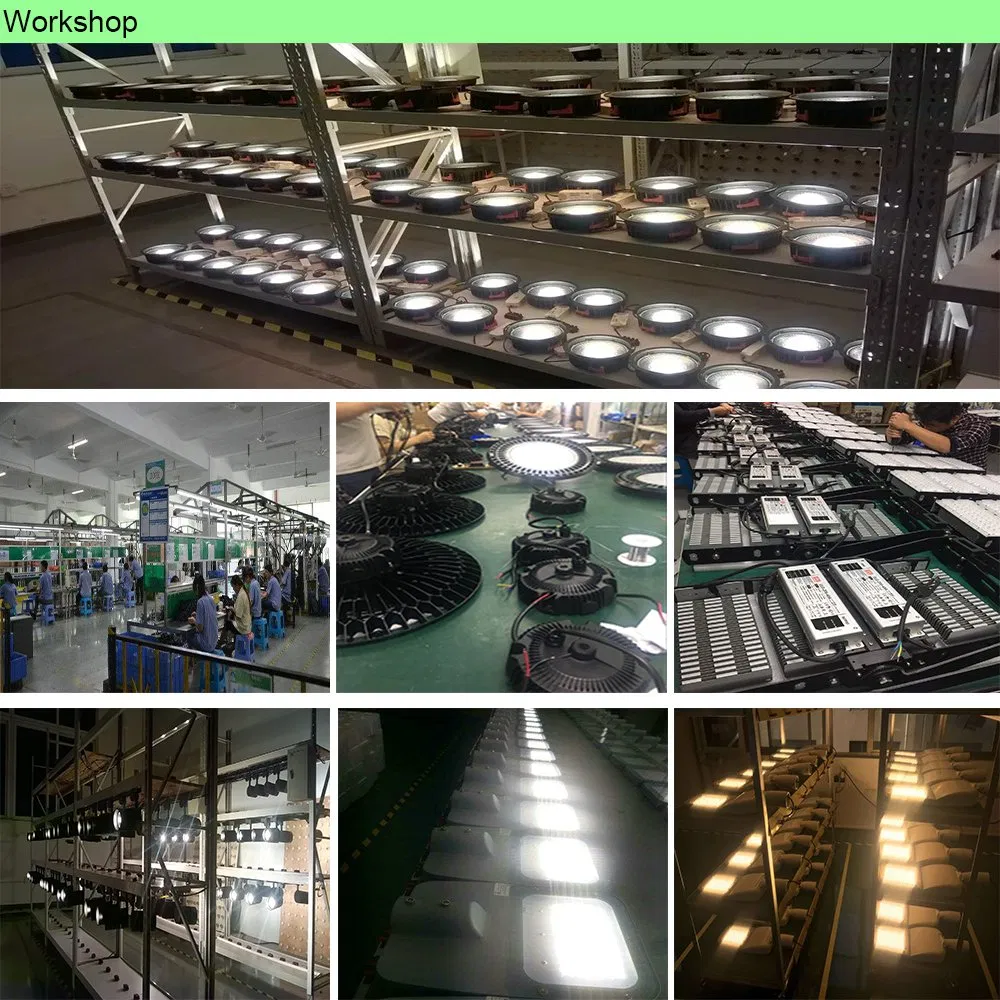

Quality Assurance
100% Raw material inspection
Process-specific quality checks
500x On/Off switching tests
Full pre-shipping inspection
Quality Standard
Limited Warranty Terms

We provide a two-year warranty from the manufacturing date. This warranty covers defects in materials and workmanship under normal use. If a product is determined to be defective, we will repair or replace the product or the defective part at our discretion. This warranty does not cover damage resulting from misuse, negligence, or unauthorized alterations.

Warranty 1
Warranty 2
Frequently Asked Questions

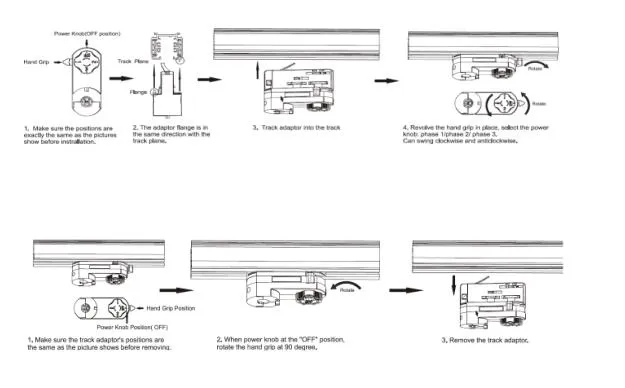

What track systems are compatible with this light?
Our track lights come with multiple adapter options including 2-wire (1-phase), 3-wire (1-phase), and 4-wire (3-phase) configurations to fit most standard global track systems.
Can I choose different beam angles for different retail displays?
Yes, we offer multiple aluminum reflectors providing beam angles of 15°, 24°, 36°, and 60° to suit different spotlighting needs.
What is the Color Rendering Index (CRI) of this 35W COB light?
This model features a high CRI of 90+, ensuring that merchandise colors appear vibrant and true to life, which is essential for retail environments.
Is the driver integrated into the track head?
Yes, it features an "in-track" driver or an integrated housing design for a sleek, modern look without external bulky power boxes.
Does the light produce a lot of heat?
The fixture is built with a high-grade aluminum housing and heat sink that maintains the surface temperature between 60°C to 70°C, ensuring a lifespan of up to 50,000 hours (L90).
Are these lights dimmable?
The standard version is non-dimmable; however, customized dimming solutions (such as Triac or DALI) can be requested for specific project requirements.
